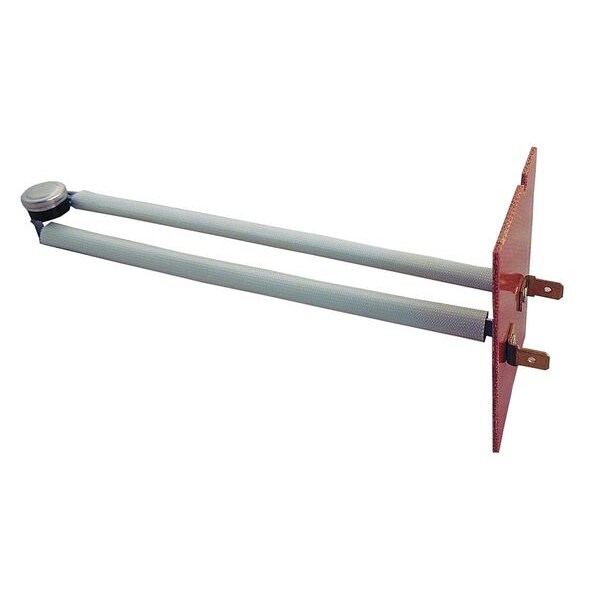

Thermostat, 180 to 200, 2-51/64in.D, SPST
| Item | Plenum Thermostat |
|---|---|
| Temp. Range (F) | 180 to 200 |
| Switch Type | SPST |
| Depth (In.) | 2-51/64 |
| Width (In.) | 1-7/8 |
| Switch Closes @ (F) | 180 Degrees F |
| Switch Opens @ (F) | 200 Degrees F |
| Resistive Amps @ 120V | 15 A |
| Resistive Rating 240V | 10 |
| Element Insertion Length (In.) | 7 |
| Differential | 20 |
| Inductive Amps @ 120V | 3 A |
| Inductive Amps @ 240V | 1.5 A |
| Switch Action | Open on Rise |
| Standards | UL Listed |
| Resistive Amps @ 240V AC | 10 A |
| Insertion Length | 7 in |
| Overall Depth | 2-3/4 in |
| Overall Height | 2-3/4 in |
| Application | Limit Control |
| Input Voltage | 120V AC, 240V AC |
| Minimum Control Temperature | 180 deg F |
| Resistive Amps @ 120V AC | 15 A |
| Switch Closing Temperature | 180 deg F |
| Product Type | Thermostat |
| Contact Form | SPST |
| Overall Width | 1-7/8 in |
| Maximum Control Temperature | 200 deg F |
| Switch Opening Temperature | 200 deg F |
| Mounting | Board Mount |
| Series | SHL |
| Reset Type | Automatic Reset |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
