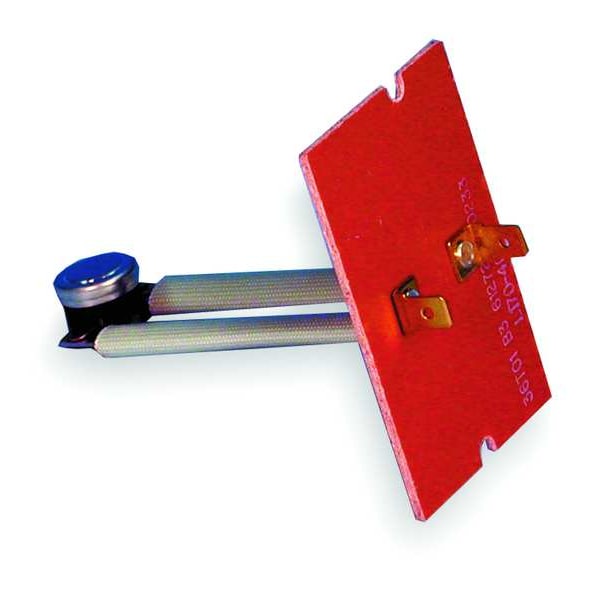

Thermostat, Limit & Plenum, Range 140-110F
| Item | Plenum Thermostat |
|---|---|
| Type | Fixed Temp, Auto Reset Plenum Mount |
| Switch Type | SPST |
| Width (In.) | 1-7/8 |
| Height (In.) | 2-7/8 |
| Switch Closes @ (F) | 110 Degrees F |
| Switch Opens @ (F) | 140 Degrees F |
| Voltage Range | 120/240/480 |
| Resistive Amps @ 120V | 15 A |
| Resistive Rating 240V | 10 |
| Element Type | Insertion |
| Inductive Amps @ 120V | 3 A |
| Circuit #1 Switch Opens @ (F) | 140 Degrees F |
| Element Insertion Length (In.) | 3-1/8 |
| Switch Action | Open on Rise |
| Circuit #1 Switch Closes @ (F) | 110 Degrees F |
| Differential | 30 Degrees F |
| Inductive Amps @ 240V | 1.5 A |
| Input Voltage | 120V AC, 240V AC |
| Product Type | Thermostat |
| Overall Height | 2-3/4 in |
| Standards | UL Listed |
| Application | Limit Control |
| Mounting | Board Mount |
| Reset Type | Automatic Reset |
| Resistive Amps @ 240V AC | 10 A |
| Contact Form | SPST |
| Overall Width | 1-7/8 in |
| Series | SHL |
| Switch Closing Temperature | 110 deg F |
| Resistive Amps @ 120V AC | 15 A |
| Switch Opening Temperature | 140 deg F |
| Insertion Length | 3-1/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
