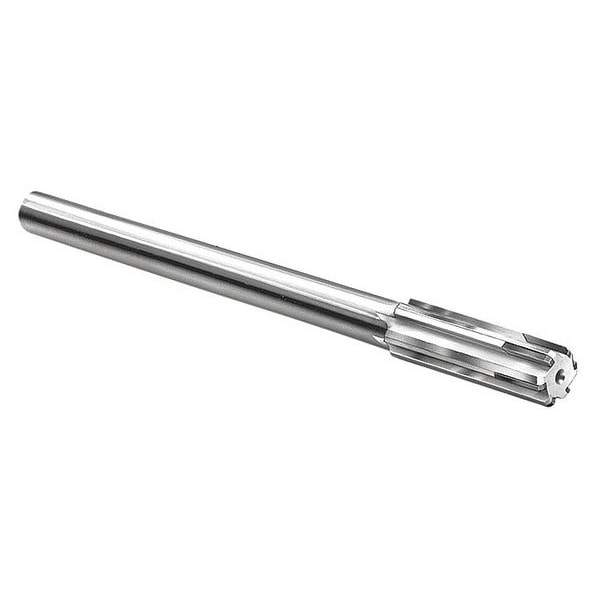

Chucking Reamer, 0.5410 In., 6 Fl, Carb Tip
| Item | Chucking Reamer |
|---|---|
| Size - Decimal | 0.541 in to 0.541 |
| Material - Machining | Carbide Tipped |
| Shank Type - Machining | Straight |
| Measurement System | Decimal Inch |
| Flute Type | Straight |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | Bright |
| Flute Length | 2 in |
| Material | Carbide Tipped |
| Overall Length | 8 in |
| Coolant Through | No |
| Large End Dia. | 0.541 in |
| Size | 0.5410" |
| Size- Decimal | 0.541 in |
| Number of Flutes | 6 |
| Chamfer Angle | 45 deg |
| Spiral Direction | Neutral |
| Shank Dia. | 7/16 in |
| Shank Size | 7/16 in |
| Chamfer | 45 deg |
| Primary Material Application ISO Code | K, M, N, S1 |
| Primary Material Application | All Materials |
| Cutting Direction | Right Hand |
| Dimension Type | Decimal inch |
| Shank Type | Straight |
| Decimal Equivalent | 0.541 |
| Reamer Size | 17/32 in |
| Material Applications | Heat-Resistant Alloys, Titanium, Cast Iron, Stainless Steel |
| Reamer Application | Through Hole |
| Coolant Fed | Non-Coolant Through |
| Cutting Dia. Tolerance | +0.0003 in /-0.0000 in |
| Package Quantity | 1 |
