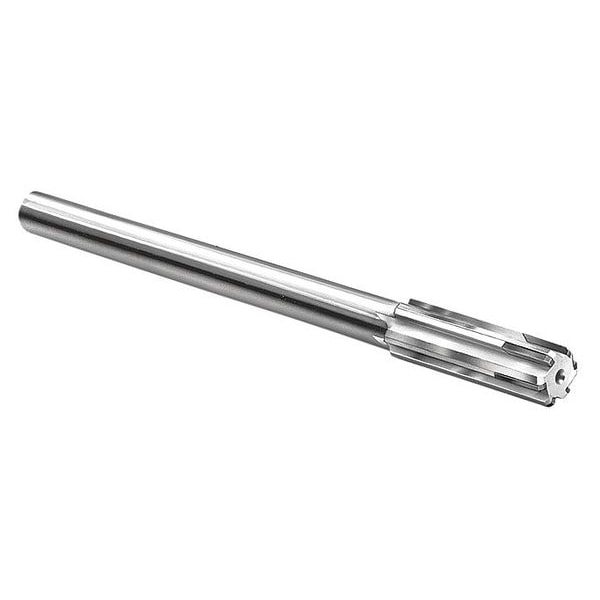

Chucking Reamer, 4.5mm, 4 Flute, Carb Tip
| Item | Chucking Reamer |
|---|---|
| Size - Decimal | 4.5 mm to 0.1772 |
| Material - Machining | Carbide Tipped |
| Shank Type - Machining | Straight |
| Measurement System | Metric |
| Flute Type | Straight |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | Bright |
| Flute Length | 29 mm |
| Primary Material Application ISO Code | K, P, O, N3, N4, N1 |
| Secondary Material Application ISO Code | K, H, P, S, M, N, O |
| Reamer Size | 4.5 mm |
| Chamfer Angle | 45 deg |
| Chamfer | 45 deg |
| Secondary Material Application | All Materials |
| Dimension Type | Metric |
| Coolant Through | No |
| Shank Dia. | 4.3 mm |
| Reamer Application | Through Hole |
| Size- Decimal | 4.5 mm |
| Shank Type | Straight |
| Material | Carbide Tipped |
| Decimal Equivalent | 0.1772 |
| Cutting Direction | Right Hand |
| Primary Material Application | All Materials |
| Overall Length | 114 mm |
| Size | 4.50mm |
| Number of Flutes | 4 |
| Material Applications | Cast Iron, Copper, Brass, Bronze, Magnesium, Composite, Thermoplastic, Glass, Aluminum, Plastic, Steel, Brick, Ceramic, Concrete, Porcelain, Rebar |
| Spiral Direction | Neutral |
| Shank Size | 0.1718 in |
| Coolant Fed | Non-Coolant Through |
| Cutting Dia. Tolerance | +0.0002 in /-0.0000 in |
| Package Quantity | 1 |
