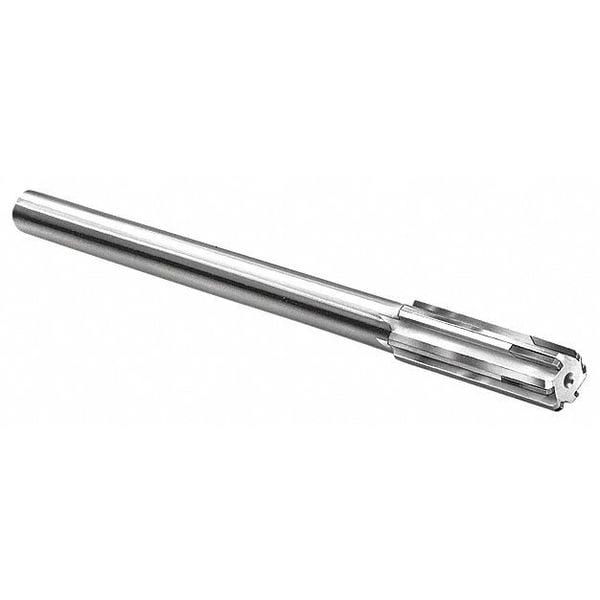

Chucking Reamer, #7, 4 Flute, Carbide Tip
| Item | Chucking Reamer |
|---|---|
| Size - Decimal | #7 - 0.2010 |
| Material - Machining | Carbide Tipped |
| Shank Type - Machining | Straight |
| Measurement System | Wire |
| Flute Type | Straight |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | Bright |
| Flute Length | 1-1/8 in |
| Chamfer Angle | 45 deg |
| Material Applications | Cast Iron, Copper, Brass, Bronze, Magnesium, Composite, Thermoplastic, Glass, Aluminum, Plastic, Steel, Brick, Ceramic, Concrete, Porcelain, Rebar |
| Coolant Through | No |
| Overall Length | 5 in |
| Decimal Equivalent | 0.201 |
| Chamfer | 45 deg |
| Size | #7 |
| Size- Decimal | #7 (0.2010) |
| Reamer Application | Through Hole |
| Cutting Direction | Right Hand |
| Material | Carbide Tipped |
| Number of Flutes | 4 |
| Dimension Type | Wire |
| Shank Type | Straight |
| Shank Size | 0.1718 in |
| Primary Material Application | All Materials |
| Spiral Direction | Neutral |
| Shank Dia. | 5/32 in |
| Reamer Size | #7 |
| Primary Material Application ISO Code | K, P, O, N3, N4, N1 |
| Cutting Dia. Tolerance | +0.0002 in /-0.0000 in |
| Coolant Fed | Non-Coolant Through |
| Package Quantity | 1 |
