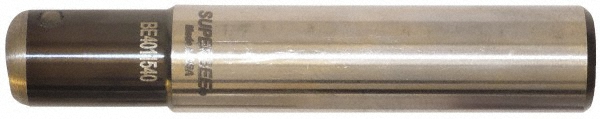

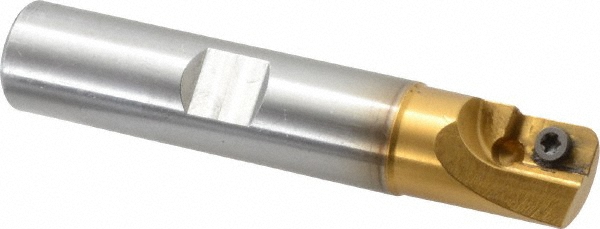

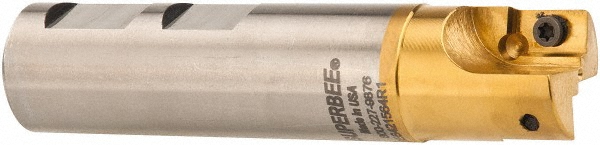

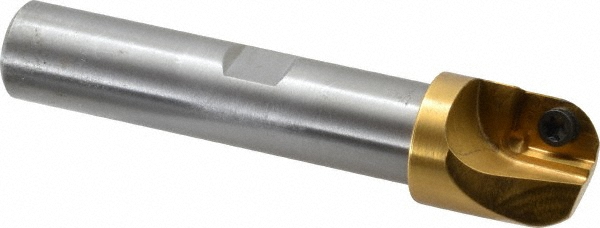

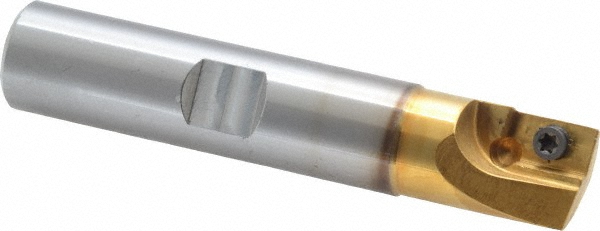

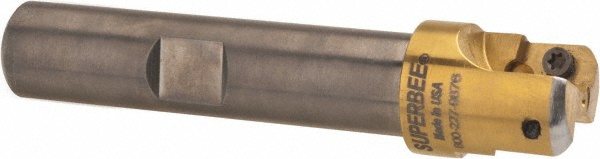

Takes 2 Insert, 4-1/2" OAL, Straight Shank with Weldon Flat, EM15 Insert Style, BE Toolholder Style
| Cutter Diameter (Inch) | 1 |
|---|---|
| Cutter Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Radius (Decimal Inch) | 0.007 |
| Maximum Cutting Radius (Decimal Inch) | 0.06 |
| Toolholder Style | BE |
| Number of Cutter Inserts | 2 |
| Insert Style | EM 15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Shank Type | Straight |
| Through Coolant | No |
| Series | R1 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Head Length (Decimal Inch) | 1.2500 |

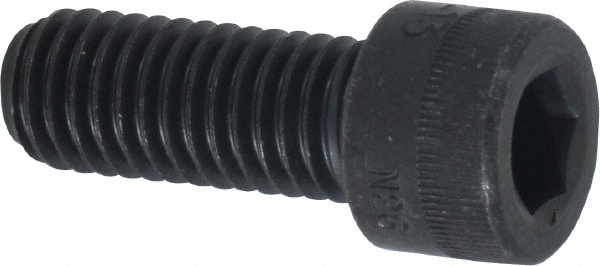

| Insert Holding Method | Screw |
| Weldon Flat | Yes |

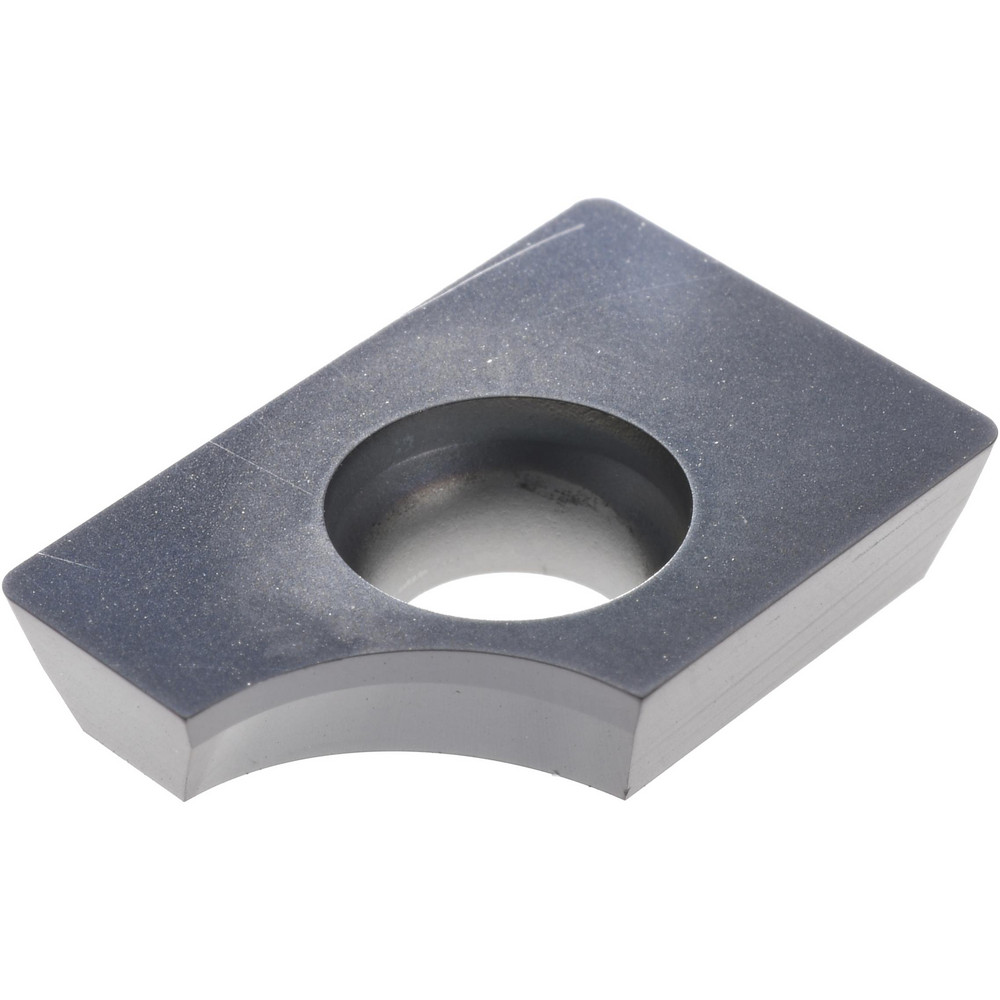

| Complete Insert Compatibility | EM15060; EM15050; EM15007; EM15015; EM15020; EM15040; EM15030 |
| Shank Diameter (Inch - 0 Decimals) | 3/4 |
| UNSPSC Code | 23241626 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 78623105 |
