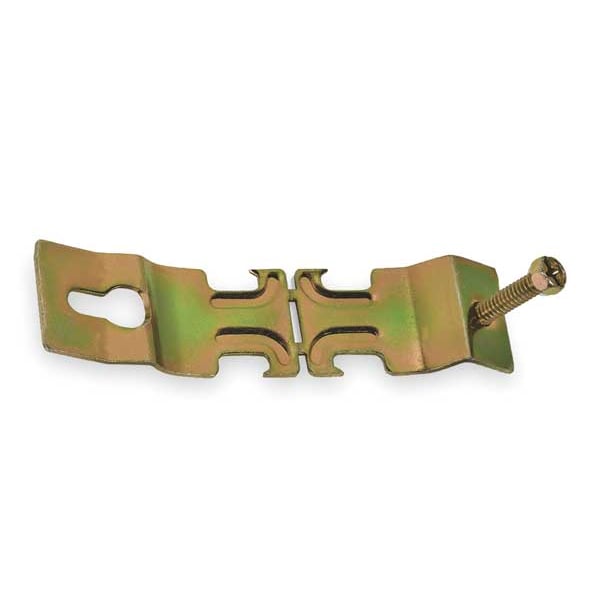

Angler Pipe Clamp, 1-1/2 In, Gold, PK10
| Sub-Category | Hangers, Clamps |
|---|---|
| Item | EMT Conduit Angler Clamp |
| Color | Gold |
| Finish | Electroplated |
| Conduit Size | 1-1/2 in |
| Material | Steel |
| Gauge | 12 ga |
| Length | 3-1/4 in |
| Thickness | 12 ga |
| Width | 1-1/4 in |
| Conduit Type | EMT |
| For Use With | EMT, IMC, Pipe, RMC |
| Length (Straight Wireway) | 3-1/4 in |
| Number of Pieces | 50 |
| Overall Width | 1-1/4 in |
| Standards | SA, UL |
| Resistance Properties | Corrosion Resistant, Abrasion Resistant |
| Load Capacity | 800 lb |
| Strut Trade Size | 1-1/2 in |
| Overall Length | 3-1/4 in |
| Nominal Strut Size | 1-1/2 in |
| Type | Conduit, Cable & Pipe Supports |
| Features | Superior Load Performance-The highest load ratings of any break-apart strap in the industry. Integrated, rolled threading provides the load performance of a hex nut without the extra hardware.; Easy Bolt Access-Angler makes it simple to reach bolts with a screwdriver or power tool, even when clamps are installed side by side.; One-Piece Design-No disassembly, no spare parts to lose or drop, easy to carry and store. |
| Size (inches) | 1.5 |
| Material Thickness (ga.) | 12 ga. |
| Install Torque (in. lbs.) | 60 |
| Design Load (lbs) | 800 |
| Special Features | Galvkrom out performs other finishes. Gold color matches Kindorf strut systems and out performs other finishes for corrosion protection, abrasion resistance and service life. |
| Number Of Holes | 0 |
| Size | 1-1/2 in |
| Standard | UL E160899 |
| Application | For use with EMT, IMC, Rigid and Standard Pipe. |
| Package Quantity | 10 |
