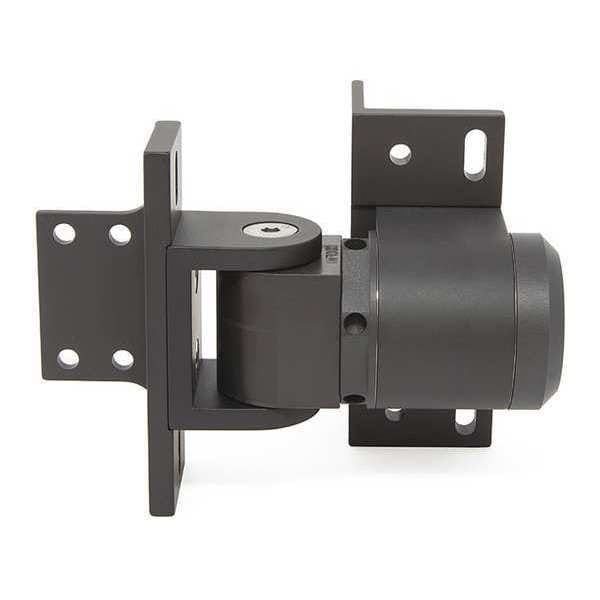

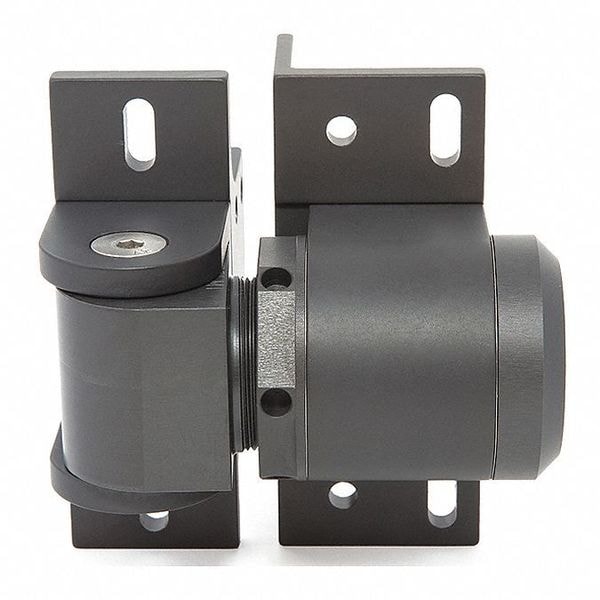

Gate Hinge, Aluminum, Screw-On Mounting, 1 3/4 in Leaf W x 4 3/8 in Leaf H, Anodized
| Corners | Square |
|---|---|
| Door Leaf Height | 4-3/8 in |
| Door Leaf Thickness | 0.35 in |
| Door Leaf Width | 1-1/2 in |
| Finish | Anodized |
| Holes per Leaf | 8 |
| Load Capacity | 1,500 lb |
| Material | Aluminum |
| Mounting | Screw-On |
| Orientation | Vertical |
| Pin Dia. | 0.31 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-1/2 in |
| Features | 5 yr Limited Warranty, Emergency Override Feature, Minimum Fence Post Size 2 in |
| Pin Material | Stainless Steel |
| Color | Dark Gray |
| Pin Type | Screw |
| Door Thickness | 1-1/2 in |
| Holes | With |
| Bearing Type | Ball |
| Height | 4-13/32 in |
| Frame Leaf Width | 1-3/4 in |
| Leaf Thickness | 0.35 in |
| Width | 4-29/32 in |
| Frame Leaf Length | 4-1/2 in |
| Ligature Resistant | No |
| Door Leaf Length | 4-1/2 in |
| Hardware | Yes |
| Item | Gate Hinge |
| Frame Leaf Thickness | 1-3/4 in |
| Frame Leaf Height | 4-3/8 in |
| Overall Width | 4 in |
| Hinge Number | #1 |
| ANSI/BHMA Finish | Painted |
| Range of Motion - Maximum | 178 deg |
| Corner Type | Square |
| Includes Hardware | Hardware Included |
| Pin Diameter | 5/16 in |
| Mounting Style | Full Surface |
| Number of Holes per Leaf | 8 |
| Door Thickness - Minimum | 2 in |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
