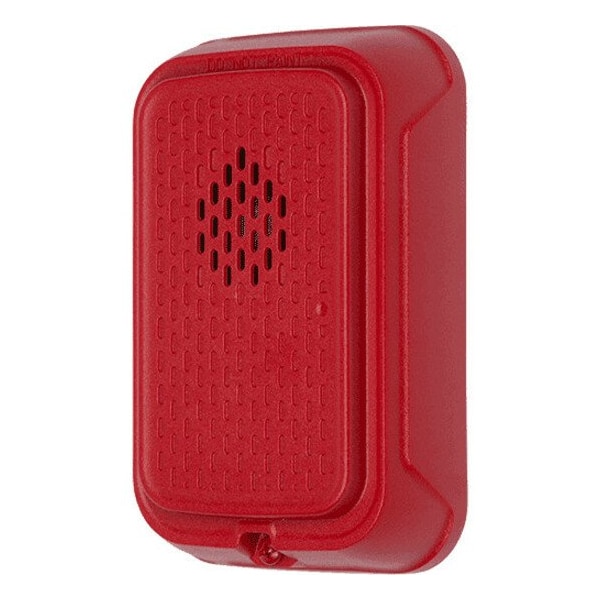

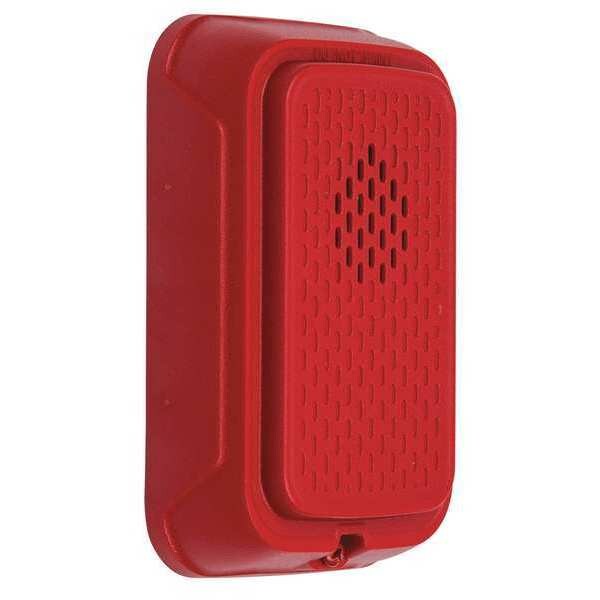

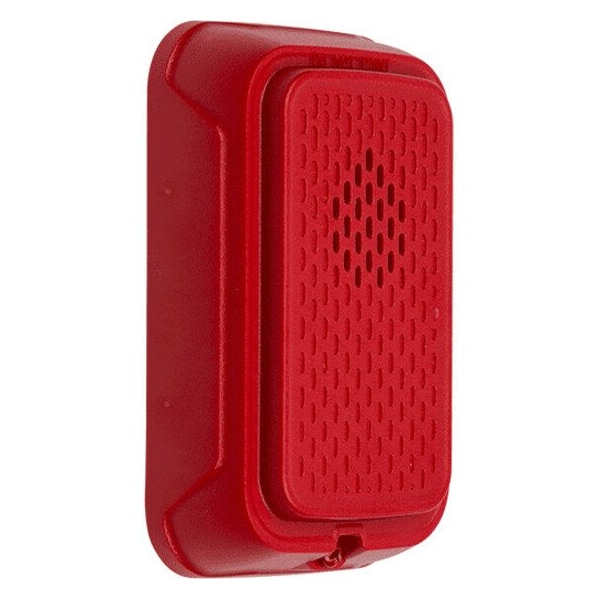

Compact Horn, Marked Fire, Red
| Item | Compact Horn |
|---|---|
| Type | Marked Fire |
| Standards | CSFM Compliant, FM Approved, UL Listed |
| Mounting | Wall |
| Voltage | 12/24V DC |
| Includes | Mounting Plate |
| Humidity Range (% RH) | 10 to 93% RH |
| Package Quantity | 1 |
| Tube Length (Ft.) | 1 ft |
| Peak Output (dBA) | 90 dBA |
| Alarm State (mA) | 75 to 90 |
| For Use With | Fire Alarm Panel |
| Length (In.) | 5-5/16 |
| Standby Current (uA) | 0 |
| Finish | Red |
| Ambient Temp. Limits (F) | 32 to 120 deg F |
| Standby State (mA) | 0 |
| Width | 3-1/2 in |
| Depth | 1.3 in |
| Product Type | Horn |
| Application | Indoor |
| Color | Red |
| Material | Plastic |
| Features | Color Lens Attachments for use with Clear Lens Wall or Ceiling Strobe, Designed with Tamper-Resistant Construction, Horn Rated at 88+ dBA at 16 V, Mounting Plate Shorting Spring Checks Wiring Continuity Before Device Installation, Offers Small Profile Devices for Horns and Horn strobes, Updated Modern Aesthetics |
| Overall Width | 3-7/16 in |
| Overall Length | 5-1/4 in |
| Lead Length | 1 ft |
| Overall Diameter | Not Applicable |
| Mounting Style | Surface Mount |
| Volume Selection | Selectable Volume |
| Legend | FIRE |
| Operating Temperature - Maximum | 120 deg F |
| Overall Depth | 1-1/4 in |
| Includes Mounting Hardware | Mounting Hardware Included |
| Operating Temperature - Minimum | 32 deg F |
| For Location | Indoor |
| Power Source | Wire |
| Sound Style | Horn |
| Operating Voltage | 12/24V |
| Country of Origin (subject to change) | Mexico |
