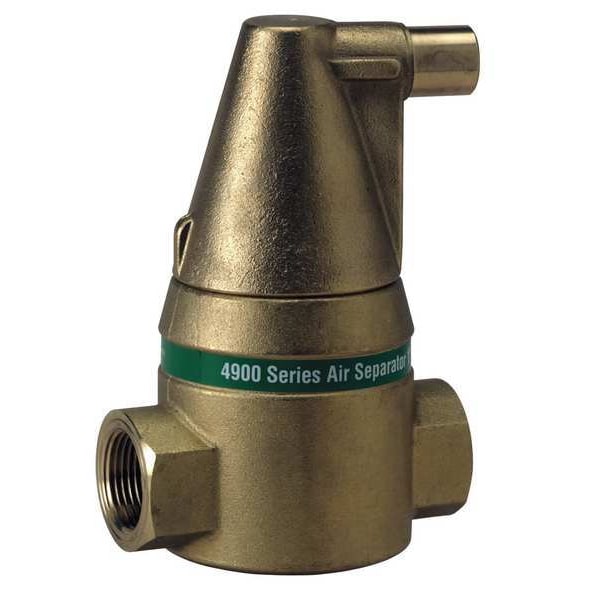

Air Separator, 1 in., 150psi, Automatic
| Item | Air Separator |
|---|---|
| Type | Automatic |
| (F)NPT Connections (In.) | 1 in |
| Max. Pressure (PSI) | 150 |
| Material | Brass |
| Connection | 1 in (F) NPT |
| Max. Temp. (F) | 240 |
| Overall Height (In.) | 6-3/4 |
| Relief Port Location | Side |
| Inlet Port Connection Size | 1 in |
| Number of Outlet Ports | 1 |
| Distance Between Inlet and Outlet Port | 4-3/8 in |
| Outlet Port Connection Type | NPT |
| Secondary Inlet Port Connection Type | Not Applicable |
| Outlet Port Connection Size | 1 in |
| For Media | Water, Glycol |
| Product Type | Air Separator |
| Air Vent Connection Size | Not Applicable |
| Expansion Tank Connection Size | 1/2 in |
| Air Vent Connection Type | Not Applicable |
| Allowable Temperature - Minimum | 25 deg F |
| Expansion Tank Connection Gender | Female |
| Operating Pressure - Minimum | 0 psi |
| Secondary Inlet Port Connection Gender | Not Applicable |
| Operating Pressure - Maximum | 150 psi |
| Expansion Tank Connection Type | NPT |
| Manufacturer Series | 4900 |
| Inlet Port Connection Gender | Female |
| Port Adjustability | Fixed |
| Application | Hydronic Heating and Cooling |
| Allowable Pressure - Maximum | 150 psi |
| Operating Temperature - Maximum | 240 deg F |
| Operating Temperature - Minimum | 25 deg F |
| Air Vent Type | Float |
| Number of Inlet Ports | 1 |
| Body Material | Brass |
| Installation Orientation | Vertical |
| Configuration | In-line |
| Standards | Not Applicable |
| Overall Width | 4-3/8 in |
| Release Method | Automatic |
| Secondary Inlet Port Connection Size | Not Applicable |
| Inlet Port Connection Type | NPT |
| Outlet Port Connection Gender | Female |
| Port Types Included | Air Vent, Expansion Tank, Inlet, Outlet |
| Overall Length | 6-3/4 in |
| Country of Origin (subject to change) | Netherlands |
| Package Quantity | 1 |
