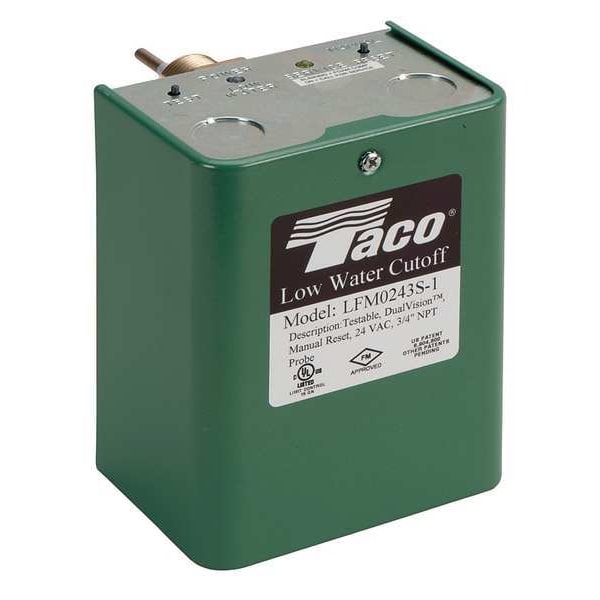

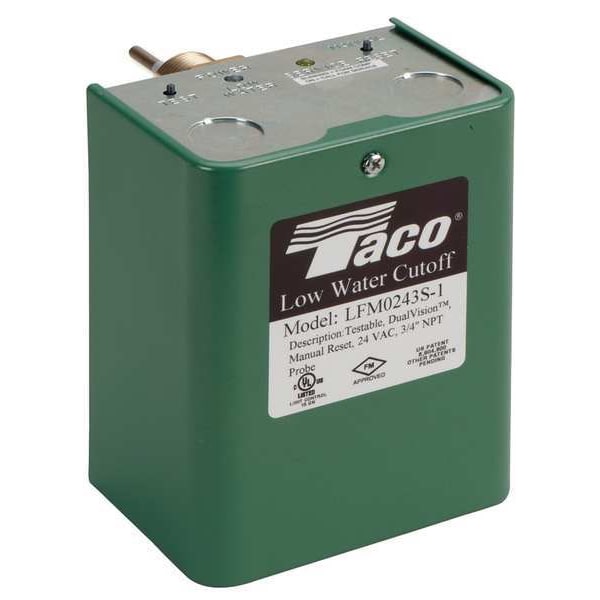

Low Water Cutoff, NPT, Electronic, NEMA 1
| Item | Low Water Cutoff |
|---|---|
| Enclosure Height (In.) | 5-3/4 |
| Type | NPT |
| Enclosure Width (In.) | 4-13/32 |
| Enclosure Depth (In.) | 3 |
| Input Voltage | 120V AC |
| Relays | 7.5Amps at 120V AC |
| Application | Steam and Hot Water Boilers |
| Switch Type | Single Pole Double Throw |
| Control Type | Electronic |
| Number of Switches | 1 |
| Wiring Conductors | Terminal Blocks |
| Enclosure Type | NEMA 1 |
| Special Features | Service indicator LED |
| Enclosure Color | Green |
| Agency Compliance | CSA, CUL, FM Approved, UL |
| Operating Range | 3/4 in |
| Standards | ASME Standards CSD-1, CSA Standard C22.2, FM, UL GUIDE (MBPR), UL GUIDE (MBPR7), UL GUIDE (MCUR2), UL Standard 353 |
| Contact Form | SPDT |
| Foam Compensation | Foam Compensating |
| Includes Test Button | Test Button Included |
| Enclosure Width | 5-3/4 in |
| Enclosure Height | 5-7/8 in |
| Product Type | Low Water Cut-Off |
| Relay Rating | 3 A to 120 V AC, 3 A to 240 V AC |
| NEMA Rating | 1 |
| Manufacturer Series | LF |
| Reset Type | Manual |
| Enclosure Depth | 4-7/16 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
