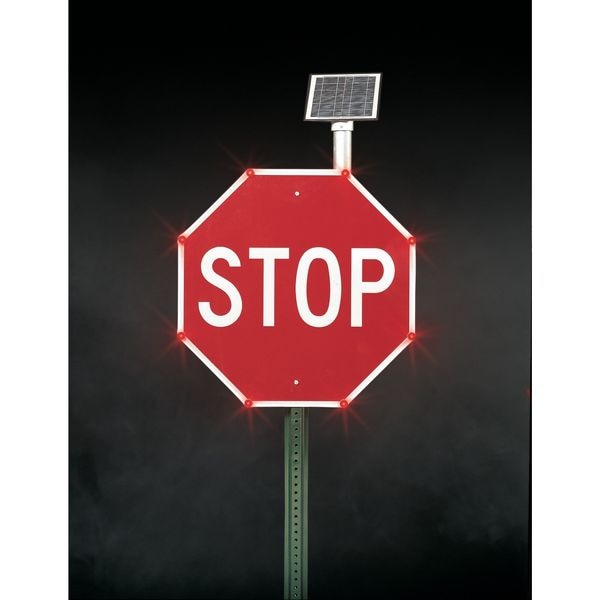

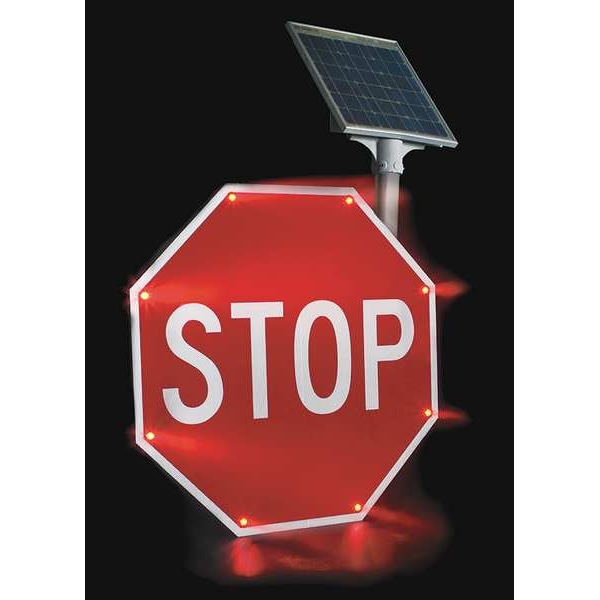

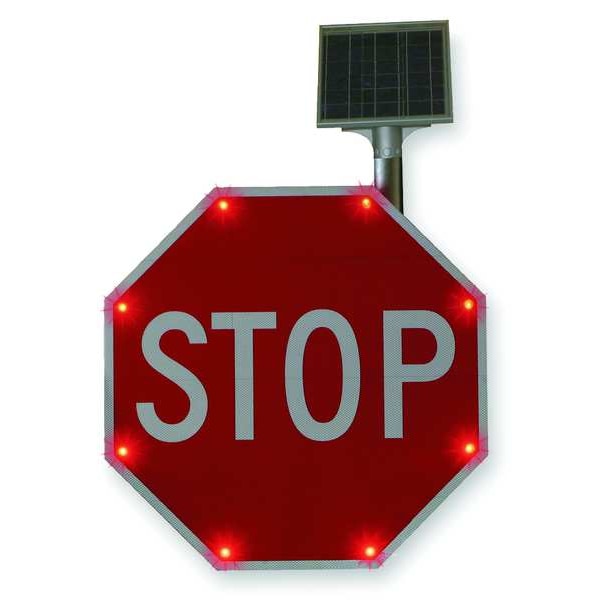

LED Stop Sign, STOP, White/Red, 30" W, 30" H
| Item | LED Stop Sign |
|---|---|
| Legend/Background Color | White/Red |
| Width | 30 in |
| Height | 30 in |
| Standards | FHWA Minimum Retroreflectivity |
| Includes | Battery Charger, Tool for Solar Panel Installation |
| Legend | Stop |
| Power Requirements | Solar |
| Legend Style | Text |
| Sign Material | Aluminum |
| Sign Width | 30 in |
| LED Color | Red |
| Sign Height | 30 in |
| MUTCD Code | R1-1 |
| Warranty | 3 yr (Battery), 5 yr (System), 10 yr (Solar Panel) |
| Features | ASTM Type XI Sheeting |
| LED Life Expectancy | 100,000 hr |
| IP Rating | IP67 |
| Includes Battery | Yes |
| Thickness | 0.08 in |
| Protective Coating | Clear Film Laminate |
| Includes Sign Post | No |
| Solar Panel Type | Panel |
| LED Display Color | Red |
| LED Sign Type | Flashing Traffic Control Sign |
| Background Color | Red |
| ADA Compliant | No |
| Enclosure Dimensions | 23 in x 2 3/8 in |
| Includes Solar Panel | Yes |
| Includes Dolly | No |
| Solar Charge Life | 14 days |
| MUTCD Sign Description | Stop |
| Number of Batteries | 1 |
| Number of Sides | 1 |
| Includes Mounting Hardware | No |
| Holes on 1 in. Centers | Yes |
| Minimum Service Temperature | -40 Degrees F |
| Retroreflective Grade | Diamond Grade |
| Enclosure Material | Aluminum |
| Basic Power Source | Solar |
| Activation Method | Always On |
| Battery Type | NiMH |
| Vandal Resistant | Yes |
| Scheduling Capabilities | No Scheduling Capabilities |
| Visibility Distance - Daytime | 1,000 ft |
| Data Collection | No |
| Maximum Service Temperature | 122 deg F |
| State Specific Sign | No |
| Mounting Hole Dia. | 3/8 in |
| Visibility Distance - Nighttime | 1 mi |
| Sign Header Text Color | White |
| Auto Dimming Capable | Yes |
| Sign Legend Style | Text |
| Sign Legend | Stop |
| Battery Capacity | 14.0Ah |
| Solar Panel Wattage | 13 W |
| Wireless Communication Method | Not Capable |
| Sign Mounting Style | Mounting Holes |
| LED Wattage | 1 W |
| Includes Vehicle Speed Sensor | No |
| MUTCD Compliant Sign | Yes |
| Mounting Pattern | 1 Top 1 Bottom |
| Solar Panel Dimensions | 14 in x 15-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
