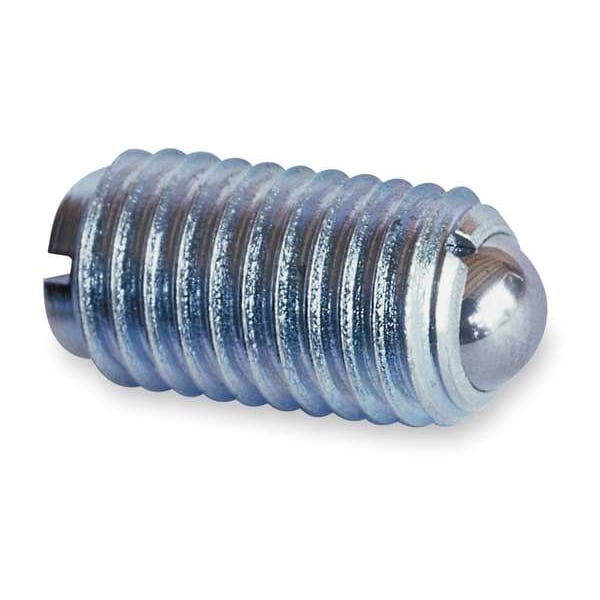

Ball Plunger, PK 10
| Item | Ball Plunger |
|---|---|
| Thread Size | M4x0.7 |
| Plunger Dia. | 2.5 mm |
| Body Length | 9 mm |
| Nose Shape | Ball |
| With Locking Plunger | No |
| Final Nose Force | 22 N |
| Plunger Projection | 0.8 mm |
| Initial Nose Force | 12 N |
| Plunger Material | Stainless Steel |
| With Flange | No |
| Ring Dia. | No |
| Body Material | Stainless Steel |
| Thread-Locking Element Included | No |
| Application | Screwdriver Installation |
| Thread Pitch | 0.7 mm |
| Standards | TCMAI |
| Overall Length | 9.8 mm |
| Thread | Fully Threaded |
| Body Finish | Black Oxide |
| Retractable | No |
| Measurement System | Metric |
| Thread Length | 9 mm |
| Includes Locking Plunger | Locking Plunger Not Included |
| Body Material Grade | 303 |
| Flange Diameter | Not Applicable |
| Plunger Finish | Uncoated |
| Seal Material | Not Applicable |
| Ring Diameter | Not Applicable |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Drive Size | Not Applicable |
| Plunger Width | 2.5 mm |
| Body Diameter | 4 mm |
| Handle Material | Not Applicable |
| Flange Thickness | Not Applicable |
| Includes Flange | Flange Not Included |
| Handle Length | Not Applicable |
| Retractability | Not Retractable |
| Plunger Material Grade | 400 |
| Handle Type | Not Applicable |
| Handle Diameter | Not Applicable |
| Nose Material | Stainless Steel |
| Package Quantity | 10 |
