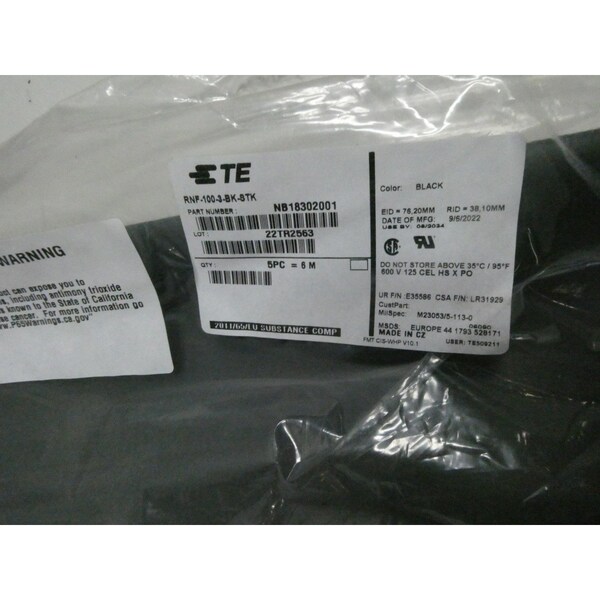

600V-Ac Wire Splice Kit & Heat Shrink Tubing
| Shrink Ratio | 0.084 |
|---|---|
| Material | Irradiated Modified Polyolefin |
| Color | Black |
| Flammability | Flame-Retardant |
| Fluid Resistance | Splash Protection |
| Wall Type | Single |
| Resistant To | Abrasion, Fluids, Mechanical Damage, Strain |
| Recovered Wall Thickness (Tolerance) | 1.3 mm [ .05 in ] |
| Expanded Inside Diameter (Min) | 76.2 mm [ 3 in ] |
| Voltage (Max) (kV) | 0.6 |
| Recovered Inside Diameter (Max) | 38.1 mm [ 1.5 in ] |
| Operating Temperature Range (°C) | -55 in to 135 |
| Recovered Wall Thickness (Nominal) | 1.3 mm [ .05 in ] |
| Recovery Temperature (°C) | 121 |
| Cut Length | 1220 mm [ 48.031 in ] |
| Fluid Type | Aviation Fuel, Hydraulic Fluid, Lubricating Oil, Water |
| Shrink Temperature (Min) (°C) | 95 |
| Flexibility | Semi-Flexible |
| Package Quantity | 5 |
