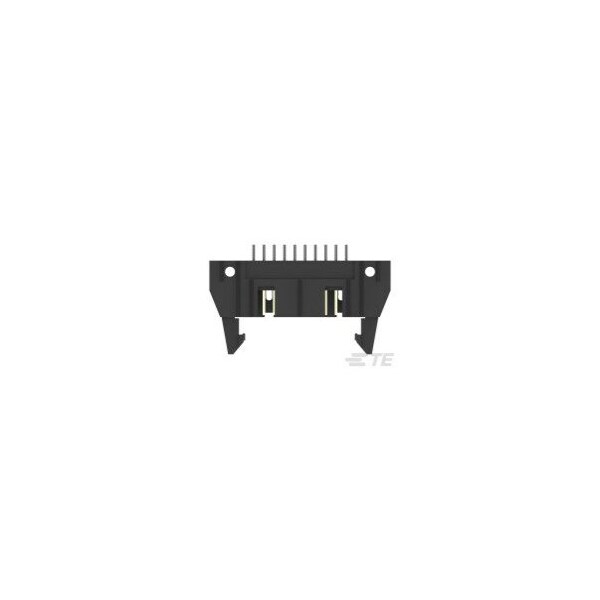

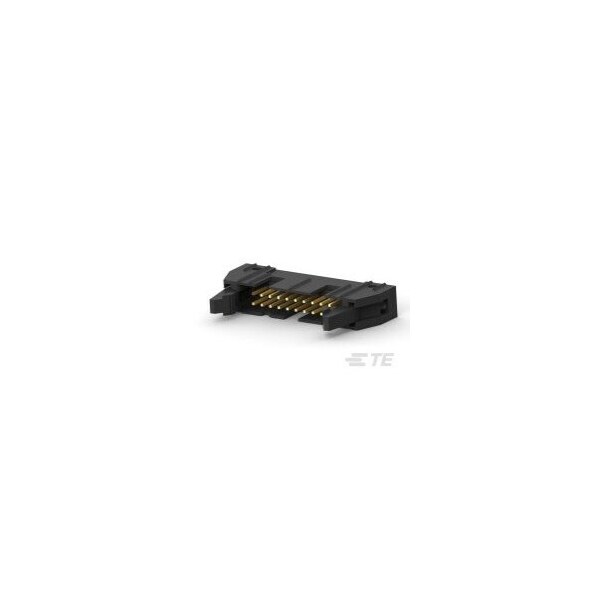

A/L UNIV HDR 20P VERT SHT LAT
| Color | Black |
|---|---|
| Max. Voltage | 250 V AC |
| Height | 13.94 mm |
| Application | Signal |
| Length | 1.759 in |
| Connection Material | Brass, Phosphor Bronze |
| Max. Temp. | 105 deg C |
| Connector Type | Header |
| Hole Center to Center | 2.54 mm |
| Features | With Ejection Latches |
| Terminal Type | Through Hole |
| Material | Polyester, Glass-Filled Nylon |
| Item | Connector |
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Contact Finish | Gold Plated |
| Current Rating | 1 A |
| Contact Type | Pin |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 30 µin |
| Connector Terminates To | Printed Circuit Board |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
