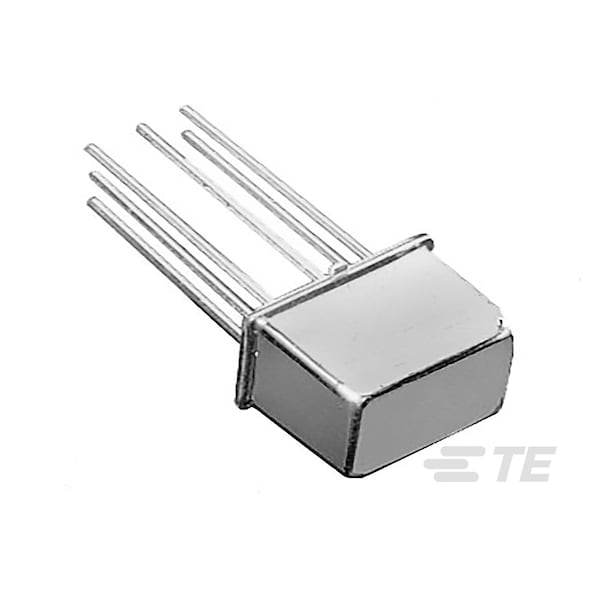

B07D692BZ2-0011 = M5757/23-001
Por favor especifique el nombre de la marca del producto que desea traducir.
| Coil Suppression Diode | Without |
|---|---|
| Enclosure Type | Hermetically Sealed |
| Coil Polarity Protection Diode | Without |
| Coil Voltage | 26.5 VDC |
| Product Type | Relay |
| Transistor Driver | Without |
| Input Voltage | 26.5 VDC |
| Contact Current Rating | 10 A |
| Coil Power Rating (DC) | 2,341 mW |
| Termination Type | Solder Hook Terminals |
| Actuating System | DC |
| Coil Latching | Without |
| MOSFET Driver | Without |
| Vibration | 20G's, 10 to 2000Hz |
| Coil Magnetic System | Monostable, Non-Polarized |
| Contact Arrangement | 2 Form C, DPDT, 2 C/O |
| Coil Resistance | 300 ohms |
| Mounting Type | Chassis Mount |
| Relay Type | Military, Aerospace High Performance |
| Operating Temperature Range | -65 to 125 deg C |
| Shock | 100G's, 6ms |
| Package Quantity | 1 |
