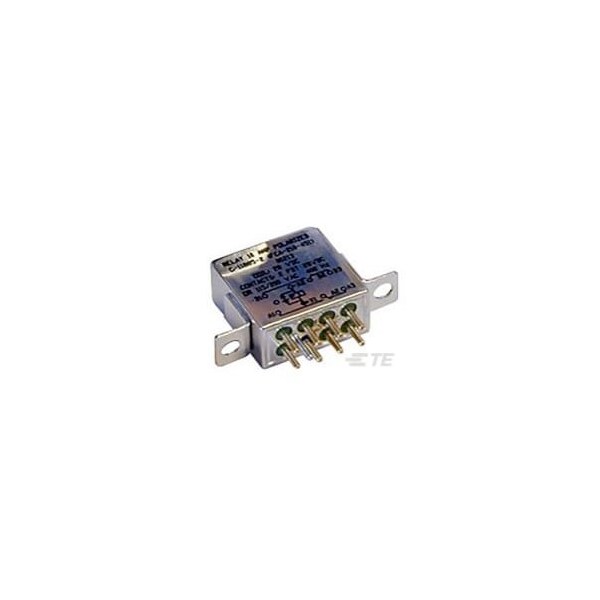

FCA-210-1015L=M83536/10-015L -> FCA-210-1015L=M83536/10-015L
| Back EMF Suppression | With |
|---|---|
| Coil Voltage Rating | 12 VDC |
| Shock | 200G's, 6ms |
| Enclosure Type | Hermetically Sealed |
| Mounting Type | Socket |
| Relay Type | Military, Aerospace High Performance |
| Vibration | 30G's, 70 to 3000Hz |
| Auxiliary Contacts | Without |
| Contact Base Material | Silver Cadmium Oxide |
| Coil Suppression Diode | With |
| Actuating System | DC |
| Terminal Configuration | Socket Pin |
| Contact Arrangement | 2 Form C, DPDT, 2 C/O |
| Operating Temperature Range | -70 to 125 deg C |
| Contact Current Rating | 10 A |
| Terminal Plating | Gold |
| Coil Resistance | 80 ohms |
| Product Type | Relay |
| Coil Magnetic System | Monostable, Polarized |
| Package Quantity | 1 |
