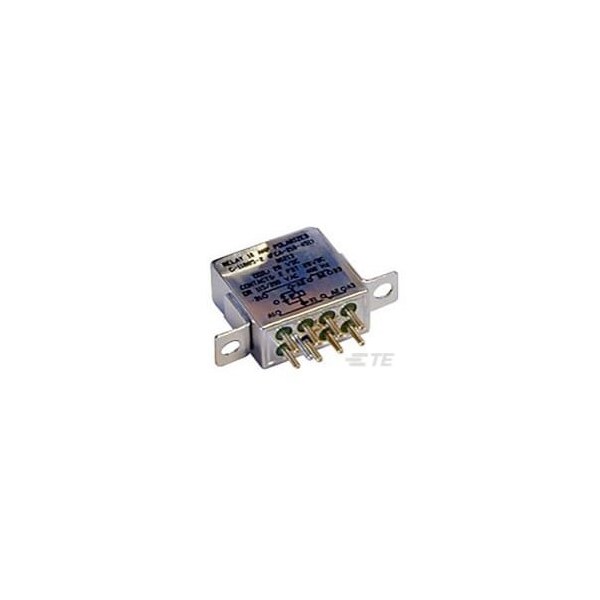

FCA-215-HX3= Relé de rango medio de doble polo y doble tiro de 15A.
| Mounting Type | Flange Mount |
|---|---|
| Operating Temperature Range | -70 to 125 deg C |
| Vibration | 30G's, 33 to 3000Hz |
| Back EMF Suppression | Without |
| Contact Arrangement | 2 Form C, DPDT, 2 C/O |
| Product Type | Relay |
| Contact Current Rating | 15 A |
| Relay Type | Military, Aerospace Mid-Range |
| Shock | 200G's, 6ms |
| Coil Suppression Diode | Without |
| Coil Resistance | 320 ohms |
| Enclosure Type | Hermetically Sealed |
| Terminal Plating | Tin-Lead |
| Actuating System | DC |
| Terminal Configuration | Solder Pins, 90° |
| Coil Voltage Rating | 28 VDC |
| Contact Base Material | Silver Cadmium Oxide |
| Coil Magnetic System | Monostable, Polarized |
| Auxiliary Contacts | Without |
| Package Quantity | 1 |
