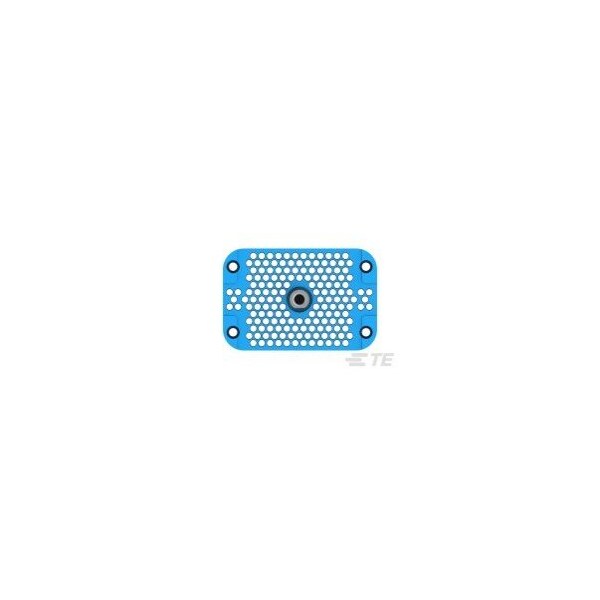

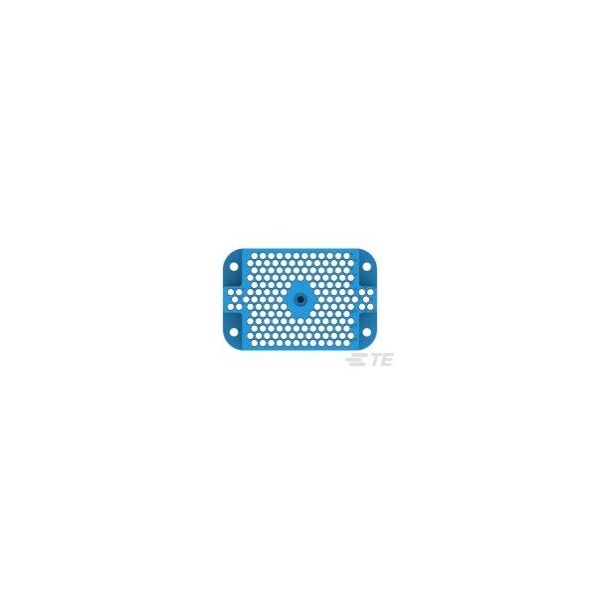

Rack And Panel Connector, 160 Contact(S), Female, Crimp Terminal, Receptacle
| Item | Housing |
|---|---|
| Color | Blue |
| Maximum Operating Temperature | 125 deg C |
| UL 94 Flammability Rating | V-0 |
| Length | 28.32 mm |
| Width | 1.826 in |
| Height | 69.85 mm |
| Material | Diallyl Phthalate |
| Contact Type | Socket |
| For Use With | 202799 Plug Block |
| Max. Temp. | 125 deg C |
| Features | Panel Mount Feature |
| Number of Contacts | 160 |
| Flammability Rating | UL 94 V-0 |
| Connector Terminates To | Wire & Cable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
