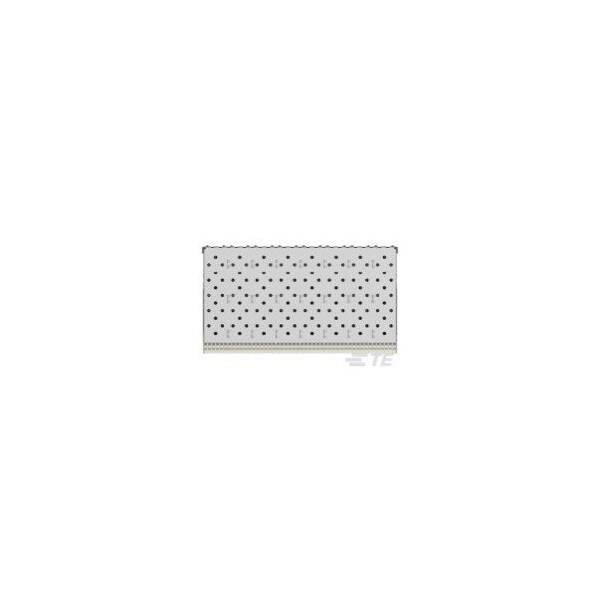

SFP+ Assy 2x8 EMI Spg 4 Lp Sn Enhanced
| Item | Cage Assembly |
|---|---|
| Application | Signal |
| Includes | Lightpipe |
| Features | Integrated Lightpipes |
| Material | Nickel Silver |
| Hole Center to Center | 0.8 mm |
| Number of Contacts | 320 |
| Contact Plating Thickness | 0.76 µm |
| Terminal Type | Through Hole - Press-Fit |
| Max. Temp. | 105 deg C |
| Flammability Rating | UL 94 V-0 |
| Number of Ports | 16 |
| Terminal Finish | Tin Plated |
| Connector Terminates To | Printed Circuit Board |
| Contact Finish | Gold Flash over Palladium Nickel |
| Package Quantity | 1 |
