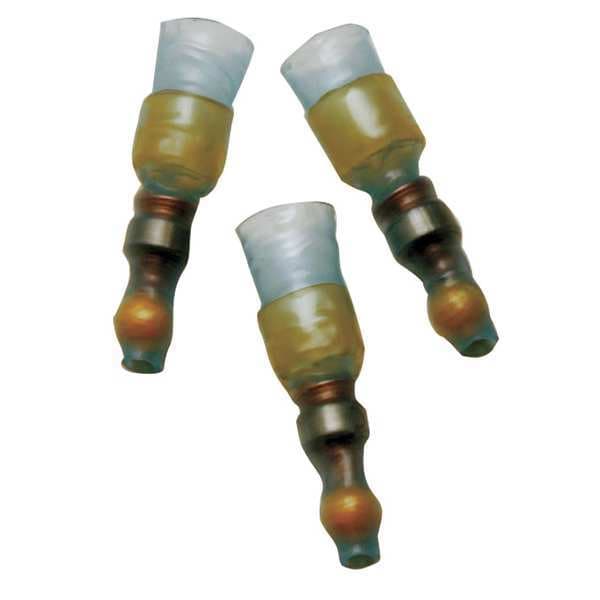

Conector de cables, termocontraíble, 8-16AWG, paquete de 25 unidades.
| Color | Yellow |
|---|---|
| Max. Voltage | 600 |
| Min. Wire Combination | # 16 AWG plus 5, #14 AWG, 1 |
| Max. Wire Combination | #14 AWG, #16 AWG plus 5, 1 |
| Height | 0.37 in |
| Length | 1.63 in |
| Insulation Type | Heat Shrink |
| Connector Type | Solder |
| Min. Wire Size | 16 AWG |
| Wire Type | Copper - Solid and Stranded |
| Description/Special Features | Environmentally Sealed, One-Step Installation |
| Standards | EU ELV Directive 2000/53/EC, EU REACH Regulation, EU RoHS Directive 2011/65/EU |
| Item | Solder-Type Wire Connector |
| Max. Wire Size | 8 AWG |
| Wire Range | 16 to 8 AWG |
| Length (Straight Wireway) | 1.77 in |
| For Wire Type | Solid Copper, Stranded Copper |
| Maximum Wire Combination | (1) 12 AWG with (1) 8 AWG |
| Maximum Voltage | 600 V |
| RoHS Compliant | Yes |
| Minimum Wire Size | 16 AWG |
| Maximum Wire Size | 8 AWG |
| Minimum Wire Combination | (1) 16 AWG with (5) 14 AWG |
| Special Features | Environmentally Sealed, One-Step Installation |
| Package Quantity | 25 |
