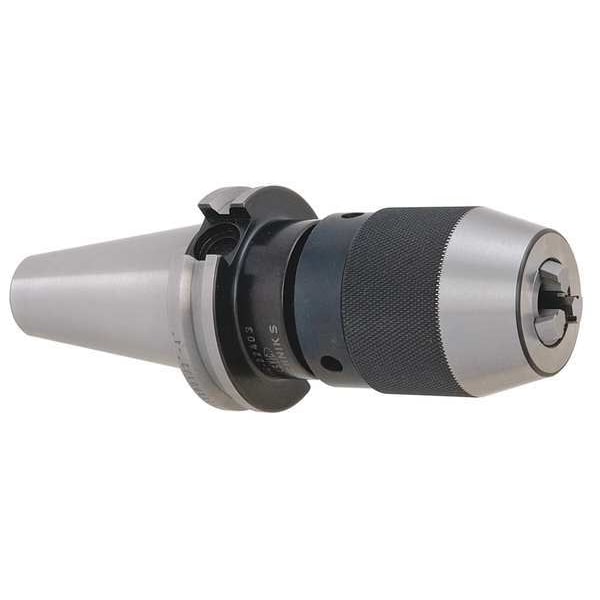

Chuck, 6-11/16in L, 0.394in. dia.
| Item | Drill Chuck |
|---|---|
| Material | Molybdenum |
| Bearing Type | Not Applicable |
| Mounting Size | CAT40 |
| Nose Radius (In.) | 0.984 |
| For Use With | Face Mill Arbors |
| Series | SPU |
| Capacity | 13/32" |
| Projection Gage Line to Nose End (In.) | 4 |
| Standards | DIN 69871-AD |
| Application | For Holding Tools |
| End | Single |
| Hole Dia. | 0.394 in |
| Overall Length (In.) | 6-11/16 |
| Projection | 4 in |
| Nose Dia. (In.) | 1.96 |
| Overall Length | 170 mm |
| Nose Dia. | 50.00mm |
| Taper Size | CAT40 |
| Key Number | Not Applicable |
| Features | Replaceable Chuck is Held by a Draw Bolt |
| Compatible Drill Diameter - Minimum | Not Applicable |
| Compatible Drill Diameter - Maximum | 1/2 in |
| Includes Key | Key Not Included |
| Duty Rating | Not Applicable |
| T.I.R. Tolerance | 0 in |
| Torque - Maximum | Not Applicable |
| Product Type | Drill Chuck |
| Keying | Keyless |
| Speed - Maximum | 20,000 rpm |
| Package Quantity | 1 |
