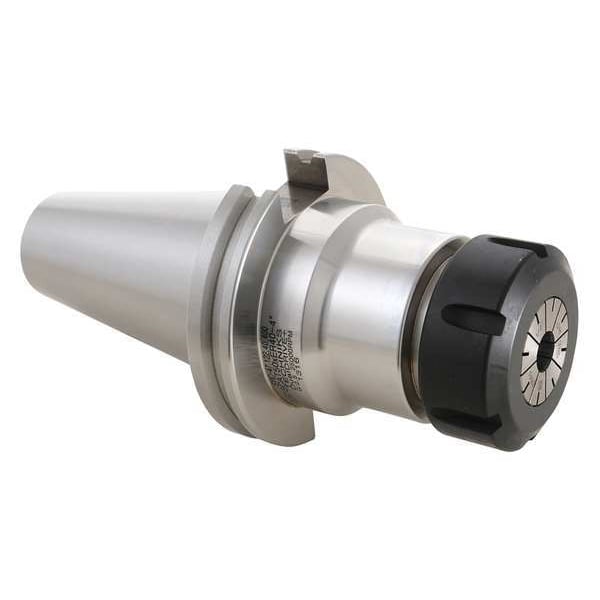

Collet Chuck, ER25, 4 in. Projection
| Item | Collet Chuck |
|---|---|
| Collet Series | ER25 |
| For Use With | Wrench Mfr. No. 4615 |
| Min. Collet Capacity | 0.039 in |
| Dimension Type | V-Flange |
| Projection | 4 in |
| Taper Size | CAT50 |
| Balanceable | Yes |
| Max. Collet Capacity | 3/4 in |
| Nut Dia. | 1.65 in |
| Spindle | Yes |
| Material | High Speed Steel |
| Pre-Balanced | Yes |
| Coolant Through | Yes |
| Runout | Yes |
| Coolant Fed | Coolant Through |
| Nose Dia. | 1.65 in |
| Features | Yes |
| Standards | DIN B |
| Compatible Nut Model Number | 41925 |
| Compatible Collet Size - Maximum | 3/4 in |
| Compatible Collet Size - Minimum | 0.039 in |
| Outside Diameter - Maximum | 2-3/4 in |
| Contact Type | Single Contact |
| Nose Diameter | 3.88 in |
| Compatible Collet Wrench | 04615 |
| T.I.R. Tolerance | 0 in |
| Includes Nut | Nut Included |
| Compatible Collet Series | ER25 |
| Product Type | CAT Collet Chuck |
| Coolant Supply | Coolant Through-Spindle |
| Includes Coolant Screws | Coolant Screws Included |
| Shank Type | Taper |
| Shank Diameter | 0.63 in |
| Included Nut Type | Slotted |
| Balance Rating | G2.5 |
| Compatible Backup Screw Model Number | 16089 |
| Speed - Maximum | 25,000 rpm |
| Nut Diameter | 1.65 in |
| Package Quantity | 1 |
