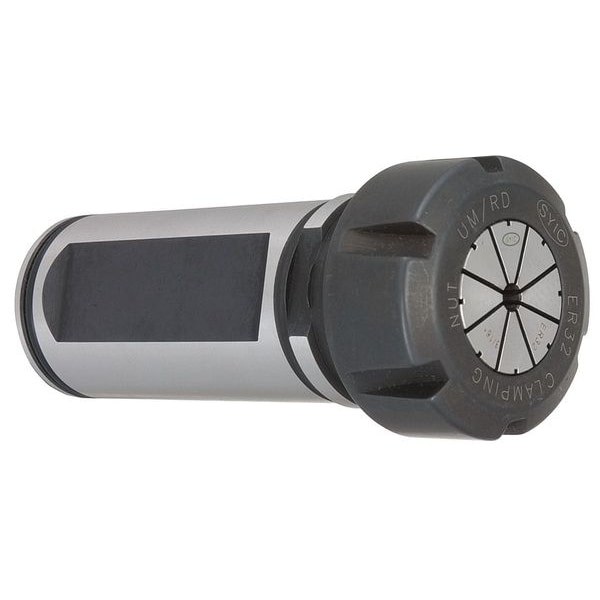

Collet Chuck, Straight, ER32, 1.496in, Steel
| Item | Collet Chuck Extension |
|---|---|
| Collet Series | ER32 |
| For Use With | CNC Lathes, Floating Taps |
| Material | High Speed Steel |
| Max. Collet Capacity | 0.787 in |
| Min. Collet Capacity | 0.039 in |
| Nut Dia. | 1.97 in |
| Dimension Type | Straight |
| Projection | 1.496 in |
| Overall Length | 120 mm |
| Shank Dia. | 1-1/2 in |
| Coolant Fed | Coolant Through |
| Nose Dia. | 50 mm |
| Features | Coolant up to 1500 psi |
| Compatible Collet Wrench | 04615 |
| Head Length | 38 mm |
| Shank Length | 80 mm |
| Head Diameter | 50 mm |
| Coolant Supply | Coolant Through |
| Compatible Nut Model Number | 41932 |
| Shank Diameter | 1-1/2 in |
| Included Nut Type | Slotted |
| Backup Screw Thread Size | M22 x 1.5 |
| Speed - Maximum | 25,000 rpm |
| Operating Pressure - Maximum | 1,500 psi |
| Compatible Collet Series | ER32 |
| T.I.R. Tolerance | 0 in |
| Compatible Product Type | ER Collets |
| Package Quantity | 1 |
