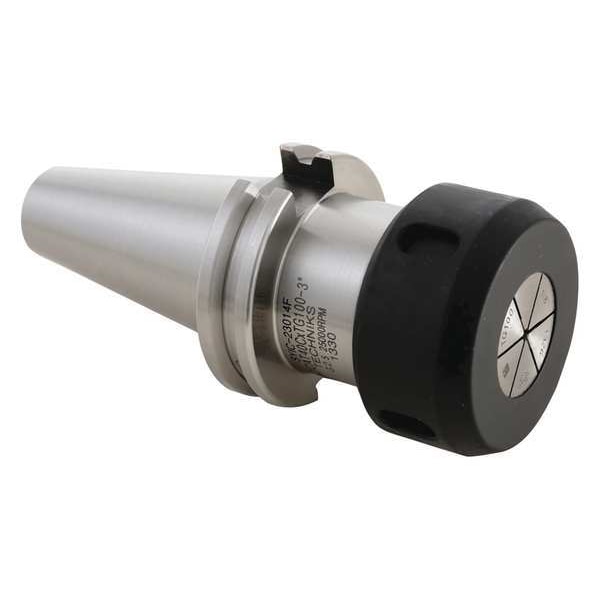

Collet Chuck, TG100, 3 in. Projection
| Item | Collet Chuck |
|---|---|
| Collet Series | TG100 |
| For Use With | Wrench Mfr. No. 3691 |
| Coolant Through | Yes |
| Projection | 3 in |
| Runout | Yes |
| Material | High Speed Steel |
| Min. Collet Capacity | 0.094 in |
| Pre-Balanced | Yes |
| Max. Collet Capacity | 1 in |
| Balanceable | Yes |
| Nut Dia. | 2.35 in |
| Taper Size | CAT50 |
| Dimension Type | V-Flange |
| Spindle | Yes |
| Coolant Fed | Coolant Through |
| Nose Dia. | 2.362 in |
| Features | Yes |
| Standards | DIN B |
| Compatible Backup Screw Model Number | 16093 |
| Nut Diameter | 2.362 in |
| Compatible Collet Wrench | 83691 |
| Includes Nut | Nut Included |
| Compatible Collet Size - Minimum | 0.094 in |
| Compatible Nut Model Number | 28110 |
| Contact Type | Single Contact |
| Shank Type | Taper |
| Compatible Collet Size - Maximum | 1 in |
| T.I.R. Tolerance | 0 in |
| Outside Diameter - Maximum | 2-3/4 in |
| Coolant Supply | Coolant Through-Flange, Coolant Through-Spindle |
| Included Nut Type | Slotted |
| Compatible Collet Series | TG100 |
| Speed - Maximum | 25,000 rpm |
| Nose Diameter | 3.88 in |
| Balance Rating | G2.5 |
| Includes Coolant Screws | Coolant Screws Included |
| Product Type | CAT Collet Chuck |
| Package Quantity | 1 |
