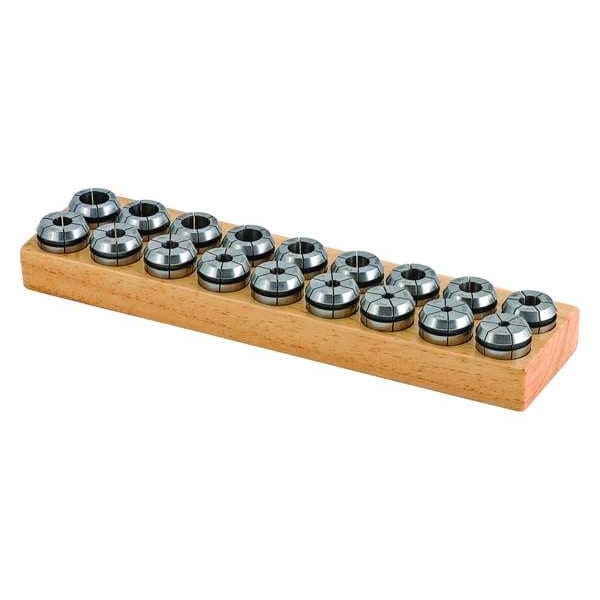

Collet Set, ER25, 0.5mm, 27 pcs.
| Item | Collet Set |
|---|---|
| Collet Series | ER25 |
| Size/Range | 0.141 to 0.381 in |
| Capacity | 0.5mm |
| Number of Pieces | 27 |
| Includes | Wooden Collet Tray |
| For Use With | Power Coat Nut |
| Head Dia. | 26 mm |
| Overall Length | 34 mm |
| Material - Machining | High Speed Steel |
| Max. Size | 16 mm |
| Number of Slots | 6 |
| Collet Type | Sealed |
| Face Shape | Round |
| Compatible with Product Type | AR, BR Series Collets, DR, ESX, RD |
| Coolant Fed | Coolant Through |
| Min. Size | 3 mm |
| Features | No Plugs to Fail, Protects Toolholder from Contaminants, Sealed to 2000 psi |
| Number of Collets | 27 |
| Collapse Range - Minimum | 3 mm |
| T.I.R. Tolerance | 0 in |
| Included Storage | Wooden Tray |
| Collapse Range - Maximum | 16 mm |
| Operating Pressure - Maximum | 750 psi |
| Included Collet Chucks | EG Collet Chucks, TG Collet Chucks |
| Product Type | Collet Set |
| Outside Diameter - Maximum | 1.02 in |
| Coolant Supply | Coolant Through |
| Collet Bore Shape | Round |
| Size Increments | 0.5 mm |
| Number of Components | 27 |
| Measurement System | Metric |
| Package Quantity | 1 |
