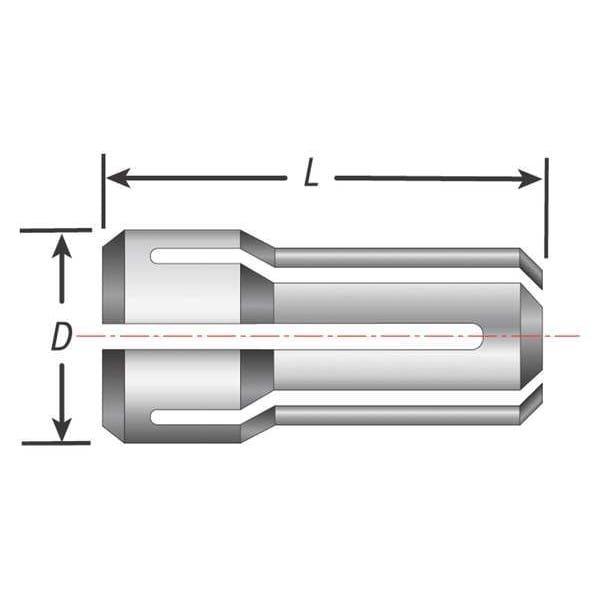

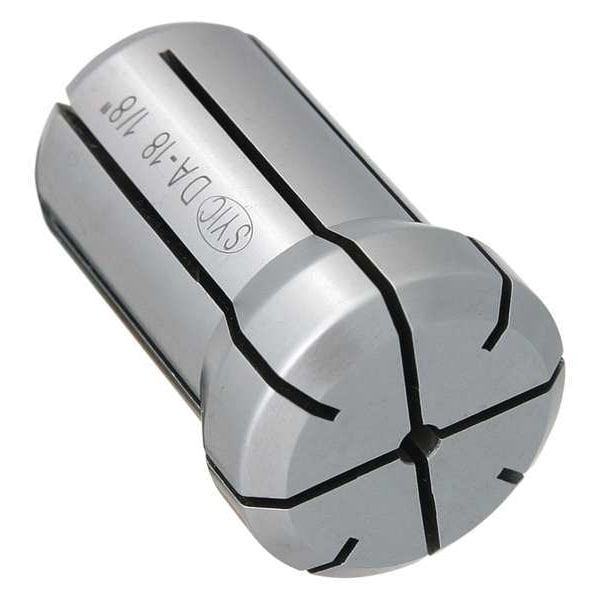

Double Angle Collet, DA180, 3/16 in.
| Item | Collet |
|---|---|
| Collet Series | DA180 |
| Range | 0.188 to 0.172 in |
| Size | 3/16" |
| For Use With | Double Angle Collet Chucks |
| Coolant Through | Yes |
| Coolant Fed | Coolant Through |
| Measurement System | Inch |
| Head Dia. | 1.035 in |
| Collet Type | Standard |
| Face Shape | Round |
| Overall Length | 1-5/8 in |
| Min. Size | 0.172 in |
| Features | Precision Ground Accuracy |
| Number of Slots | 4 |
| Max. Body Dia. | 3/16 in |
| Material - Machining | High Speed Steel |
| Material | High-Carbon Steel |
| T.I.R. Tolerance | 0 in |
| Collapse Range - Minimum | 0.1719 in |
| Operating Pressure - Maximum | 2,000 psi |
| Finish | Precision Ground |
| Outside Diameter - Maximum | 1.035 in |
| Collapse Range - Maximum | 3/16 in |
| Bore Shape | Round |
| Package Quantity | 1 |
