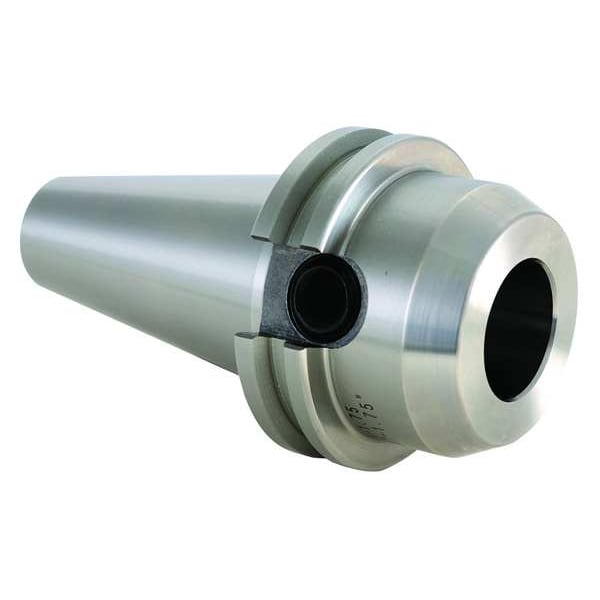

End Mill Holder and Adapter
| Compatible with Product Type | Collet Nuts |
|---|---|
| For Use With | Powercoat Nut |
| Item | End Mill Holder and Adapter |
| Measurement System | Inch |
| Overall Length | 2-3/8 in |
| Features | Balanced to 15,000 RPM @ G6.3, Tapered body design Reduces Vibration and Enhances Rigidity, Increased Rigidity and Accuracy during Heavy Side Loads |
| Standards | Techniks Certified |
| Thread Pitch | Not Applicable |
| Taper Size | CAT40 |
| Projection | 3 in |
| Coolant Supply | Coolant Channel, Coolant Through-Spindle |
| Body Width | 1-3/4 in |
| T.I.R. Tolerance | 0 in |
| Bore Tolerance | H5 |
| Balance Rating | G6.3 |
| Bore Diameter | 1/8 in |
| Nose Diameter | 0.78 in |
| Body Diameter | 1-3/4 in |
| Contact Type | Single Contact |
| Overall Diameter | 2-1/2 in |
| Product Type | End Mill Holder |
| Speed - Maximum | 15,000 rpm |
| Package Quantity | 1 |
