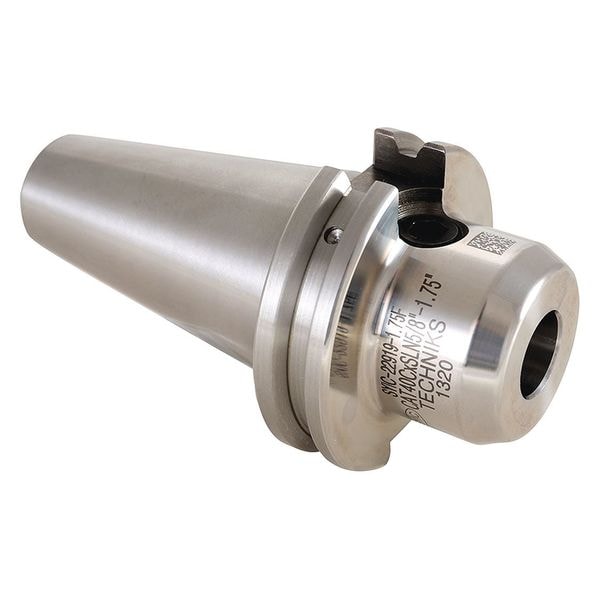

End Mill Holder and Adapter, For Mill Shank Dia.: 1/2"
| Features | Dual-Contact Increases Rigidity and Accuracy During Machining, High Precision Bore (H5) is Best in Industry, Taper Ground to AT3 Specification |
|---|---|
| Item | End Mill Holder and Adapter |
| Standards | Techniks Certified |
| Projection | 3 in |
| Taper Size | CAT40 |
| Modular Connection | CAT40 |
| Coolant Fed | Coolant Through |
| Nose Style | Standard |
| Max. Speed | 25,000 rpm |
| Shank Type - Machining | Straight |
| For Mill Shank Dia. | 1/2 in |
| Measurement System | Inch |
| For Shank Type | Straight |
| Compatible with Product Type | Machine |
| Bore Dia. | 1/2 in |
| Nose Dia. | 1-1/4 in |
| Bore Tolerance | H5 |
| Speed - Maximum | 15,000 rpm |
| Nose Diameter | 0.78 in |
| Contact Type | Dual Contact |
| Bore Diameter | 1/4 in |
| T.I.R. Tolerance | 0 in |
| Balance Rating | G6.3 |
| Coolant Supply | Coolant Channel, Coolant Through-Spindle |
| Product Type | End Mill Holder |
| Package Quantity | 1 |
