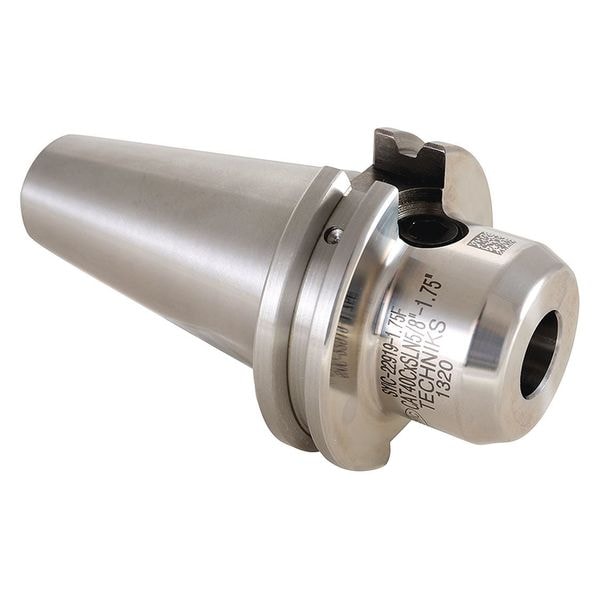

End Mill Holder and Adapter, Max. Speed: 25, 000 RPM
| Measurement System | Metric |
|---|---|
| For Shank Type | Straight |
| Projection | 101.6 mm |
| Nose Style | Standard |
| Compatible with Product Type | Machine |
| Features | Dual-Contact Increases Rigidity and Accuracy During Machining, High Precision Bore (H5) is Best in Industry, Taper Ground to AT3 Specification |
| Taper Size | CAT40 |
| Modular Connection | CAT50 |
| Shank Type - Machining | Straight |
| Nose Dia. | 1-3/4 in |
| Standards | Techniks Certified |
| Coolant Fed | Coolant Through |
| Bore Dia. | 3/4 in |
| For Mill Shank Dia. | 3/4 in |
| Item | End Mill Holder and Adapter |
| Max. Speed | 25,000 rpm |
| Contact Type | Dual Contact |
| Balance Rating | G6.3 |
| Product Type | End Mill Holder |
| Coolant Supply | Coolant Through-Spindle |
| Bore Diameter | 16 mm |
| T.I.R. Tolerance | 0 in |
| Speed - Maximum | 15,000 rpm |
| Nose Diameter | 19.8 mm |
| Bore Tolerance | H5 |
| Package Quantity | 1 |
