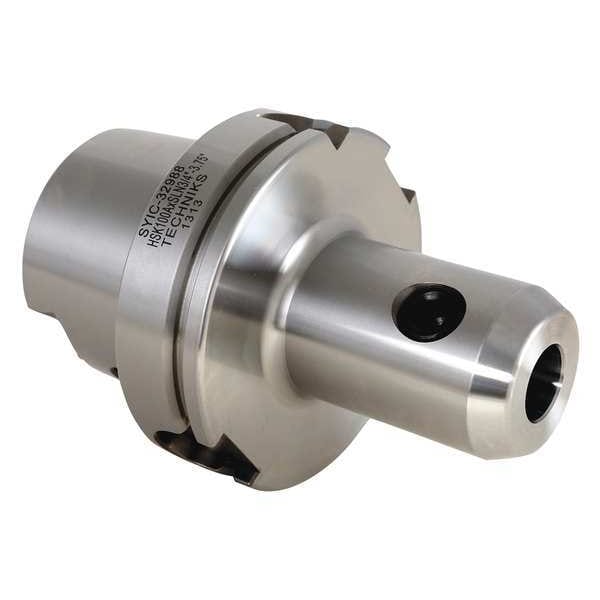

End Mill Holder and Adapter, Nose Dia.: 0.8800"
| Item | End Mill Holder and Adapter |
|---|---|
| Features | Balanced to 15,000 RPM @ G6.3, Improved T.I.R. for extended Cutting Tool Life, Tapered body design Reduces Vibration and Enhances Rigidity |
| Standards | Techniks Certified |
| Taper Size | HSK100A |
| For Shank Type | Straight |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Straight |
| For Mill Shank Dia. | 5/16 in |
| Projection | 6 in |
| Measurement System | Inch |
| Compatible with Product Type | Machine |
| Nose Style | Standard |
| Modular Connection | CAT50 |
| Nose Dia. | 1.63 in |
| Bore Dia. | 5/16 in |
| Thread Pitch | Not Applicable |
| Bore Depth | 2.09 in |
| Max. Speed | 15,000 rpm |
| Speed - Maximum | 15,000 rpm |
| T.I.R. Tolerance | 0 in |
| Bore Diameter | 5/8 in |
| Body Width | 2.95 in |
| Overall Diameter | 3-15/16 in |
| Contact Type | Single Contact |
| Coolant Supply | Coolant Through |
| Nose Diameter | 1.63 in |
| Product Type | End Mill Holder |
| Balance Rating | G6.3 |
| Body Diameter | 2.95 in |
| Bore Tolerance | H5 |
| Package Quantity | 1 |
