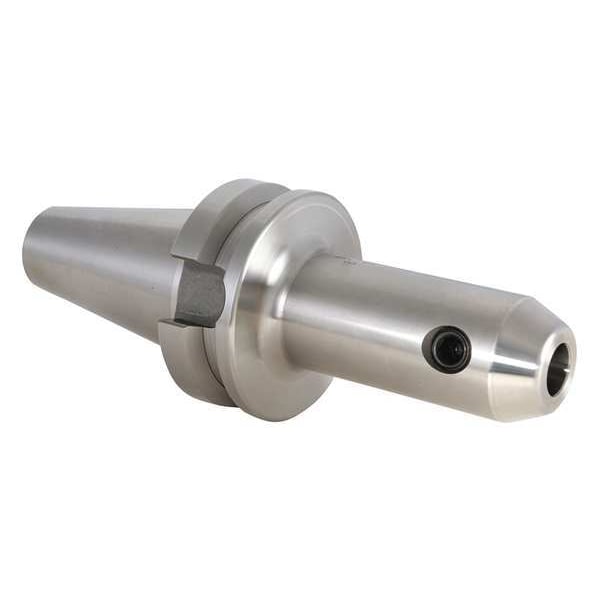

End Mill Holder, BT40, 0.1250in Bore Dia.
| Projection | 4 in |
|---|---|
| Item | End Mill Holder |
| Bore Dia. | 1/8 in |
| Taper Size | BT40 |
| End | Single |
| Nose Type | Extended |
| Dimension Type | SAE |
| Nose Dia. | 0.68 in |
| Coolant Through | Yes |
| Lock Screw Thread Size | 6 to 32 |
| Thread Size | #6-32 |
| Coolant Fed | Coolant Through |
| Features | Taper Ground to AT3 Specification for Maximum Spindle Contact |
| Measurement System | Inch |
| End Type | Single End |
| Shank Type - Machining | Taper |
| Contact Type | Single Contact |
| T.I.R. Tolerance | 0 in |
| Overall Diameter | 2-31/64 in |
| Body Width | 1-3/4 in |
| Coolant Supply | Coolant Through-Spindle |
| Bore Tolerance | H5 |
| Bore Diameter | 1/8 in |
| Nose Diameter | 0.68 in |
| Set Screw Thread Size | #6 |
| Body Diameter | 1-3/4 in |
| Product Type | End Mill Holder |
| Speed - Maximum | 15,000 rpm |
| Balance Rating | G6.3 |
| Package Quantity | 1 |
