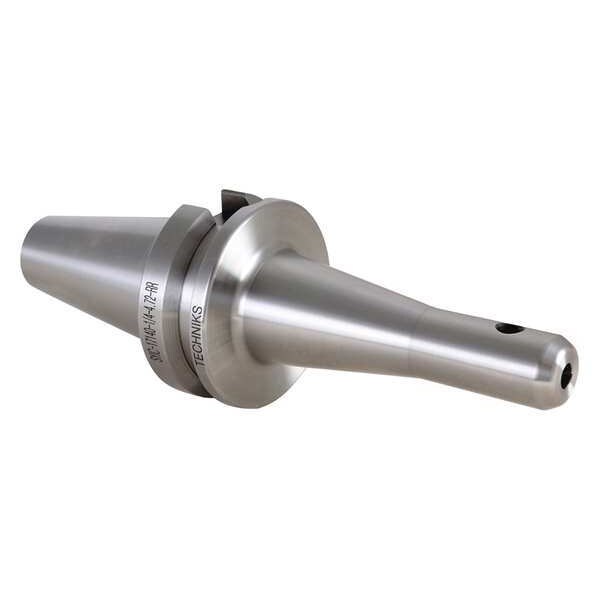

End Mill Holder, BT40, 0.3750in Bore Dia.
| Taper Size | BT40 |
|---|---|
| Coolant Through | Yes |
| Bore Dia. | 3/8 in |
| Projection | 4.72 in |
| End | Single |
| Item | End Mill Holder |
| Nose Dia. | 1 in |
| Nose Type | Rigid Reach |
| Lock Screw Thread Size | 0.375 to 24 |
| Dimension Type | SAE |
| Thread Size | 3/8"-24 |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Taper |
| Measurement System | Inch |
| Features | High Precision Bore (H5) is Best in Industry, Taper Ground at AT3 for Maximum Spindle Contact |
| End Type | Single End |
| Bore Diameter | 3/8 in |
| Nose Diameter | 1 in |
| Bore Tolerance | H5 |
| Product Type | End Mill Holder |
| T.I.R. Tolerance | 0 in |
| Balance Rating | G6.3 |
| Coolant Supply | Coolant Through-Spindle |
| Contact Type | Single Contact |
| Set Screw Thread Size | 3/8 in |
| Speed - Maximum | 15,000 rpm |
| Package Quantity | 1 |
