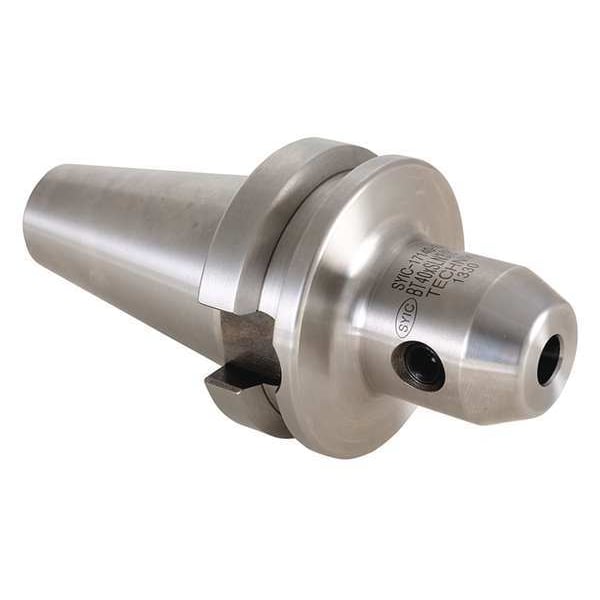

End Mill Holder, BT40, 0.5000in Bore Dia.
| Nose Dia. | 1-1/4 in |
|---|---|
| End | Single |
| Item | End Mill Holder |
| Lock Screw Thread Size | 0.4375 to 20 |
| Nose Type | Standard |
| Coolant Through | Yes |
| Dimension Type | SAE |
| Taper Size | BT40 |
| Projection | 2-1/2 in |
| Bore Dia. | 1/2 in |
| Thread Size | 7/16"-20 |
| Coolant Fed | Coolant Through |
| Features | High Precision Bore (H5) is Best in Industry, Taper Ground at AT3 for Maximum Spindle Contact |
| End Type | Single End |
| Shank Type - Machining | Taper |
| Measurement System | Inch |
| Speed - Maximum | 15,000 rpm |
| Bore Tolerance | H5 |
| Coolant Supply | Coolant Through-Flange, Coolant Through-Spindle |
| Bore Diameter | 1/2 in |
| Set Screw Thread Size | 7/16 in |
| Nose Diameter | 1-1/4 in |
| Product Type | End Mill Holder |
| Balance Rating | G6.3 |
| Contact Type | Dual Contact |
| T.I.R. Tolerance | 0 in |
| Package Quantity | 1 |
