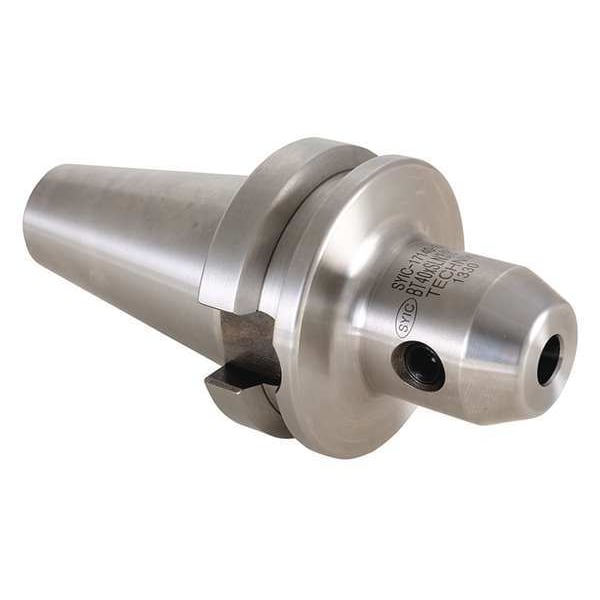

End Mill Holder, BT40, 1.0000in Bore Dia.
| Lock Screw Thread Size | 0.75 to 16 |
|---|---|
| Nose Type | Standard |
| Nose Dia. | 2 in |
| Dimension Type | SAE |
| End | Single |
| Coolant Through | Yes |
| Projection | 3.56 in |
| Item | End Mill Holder |
| Taper Size | BT40 |
| Bore Dia. | 1 in |
| Thread Size | 3/4"-16 |
| Coolant Fed | Coolant Through |
| Features | High Precision Bore (H5) is Best in Industry, Taper Ground at AT3 for Maximum Spindle Contact |
| Measurement System | Inch |
| End Type | Single End |
| Shank Type - Machining | Taper |
| Bore Diameter | 1 in |
| T.I.R. Tolerance | 0 in |
| Bore Tolerance | H5 |
| Nose Diameter | 2 in |
| Speed - Maximum | 15,000 rpm |
| Coolant Supply | Coolant Through-Flange, Coolant Through-Spindle |
| Contact Type | Dual Contact |
| Product Type | End Mill Holder |
| Balance Rating | G6.3 |
| Set Screw Thread Size | 3/4 in |
| Package Quantity | 1 |
