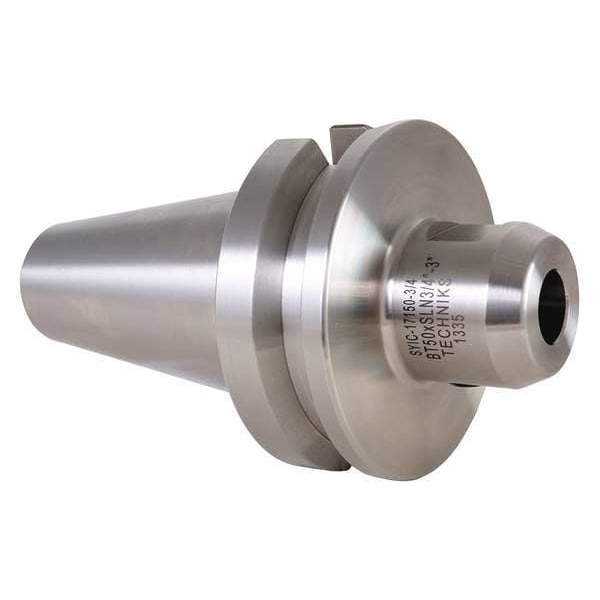

End Mill Holder, BT50, 1.0000in Bore Dia.
| Bore Dia. | 1 in |
|---|---|
| Nose Type | Extended |
| Taper Size | BT50 |
| Dimension Type | SAE |
| Projection | 4-1/2 in |
| Coolant Through | Yes |
| End | Single |
| Item | End Mill Holder |
| Lock Screw Thread Size | 0.75 to 16 |
| Nose Dia. | 2 in |
| Thread Size | 3/4"-16 |
| Coolant Fed | Coolant Through |
| End Type | Single End |
| Shank Type - Machining | Taper |
| Measurement System | Inch |
| Features | Balanced to 15,000 RPM @ G6.3, Tapered body design Reduces Vibration and Enhances Rigidity, Increased Rigidity and Accuracy during Heavy Side Loads |
| Nose Diameter | 2 in |
| Balance Rating | G6.3 |
| Speed - Maximum | 15,000 rpm |
| Set Screw Thread Size | 3/4 in |
| Overall Diameter | 3-15/16 in |
| Bore Diameter | 1 in |
| Body Width | 2-3/4 in |
| Bore Tolerance | H5 |
| T.I.R. Tolerance | 0 in |
| Contact Type | Single Contact |
| Coolant Supply | Coolant Through-Spindle |
| Body Diameter | 2-3/4 in |
| Product Type | End Mill Holder |
| Package Quantity | 1 |
