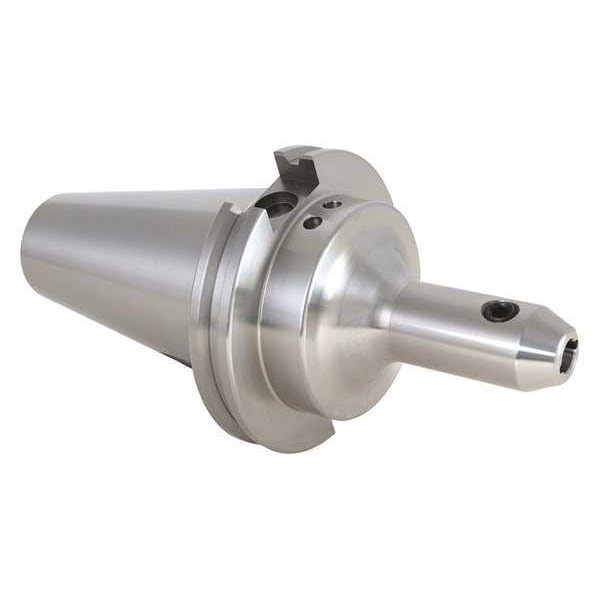

End Mill Holder, CAT50, 0.3750in Bore Dia.
| Projection | 6 in |
|---|---|
| Bore Dia. | 3/8 in |
| Coolant Through | Yes |
| End | Single |
| Nose Type | Extended |
| Nose Dia. | 1 in |
| Item | End Mill Holder |
| Taper Size | CAT50 |
| Lock Screw Thread Size | 0.375 to 24 |
| Dimension Type | SAE |
| Thread Size | 3/8"-24 |
| Coolant Fed | Coolant Through |
| Shank Type - Machining | Taper |
| Measurement System | Inch |
| Features | Balanced to 15,000 RPM @ G6.3, Improved T.I.R. for extended Cutting Tool Life, Tapered body design Reduces Vibration and Enhances Rigidity, Increased Rigidity and Accuracy during Heavy Side Loads |
| End Type | Single End |
| Contact Type | Single Contact |
| Nose Diameter | 1 in |
| Set Screw Thread Size | 3/8 in |
| Overall Diameter | 3-7/8 in |
| Product Type | End Mill Holder |
| Body Width | 2-3/4 in |
| Body Diameter | 2-3/4 in |
| Speed - Maximum | 15,000 rpm |
| T.I.R. Tolerance | 0 in |
| Coolant Supply | Coolant Channel, Coolant Through-Spindle |
| Bore Tolerance | H5 |
| Bore Diameter | 3/8 in |
| Balance Rating | G6.3 |
| Package Quantity | 1 |
