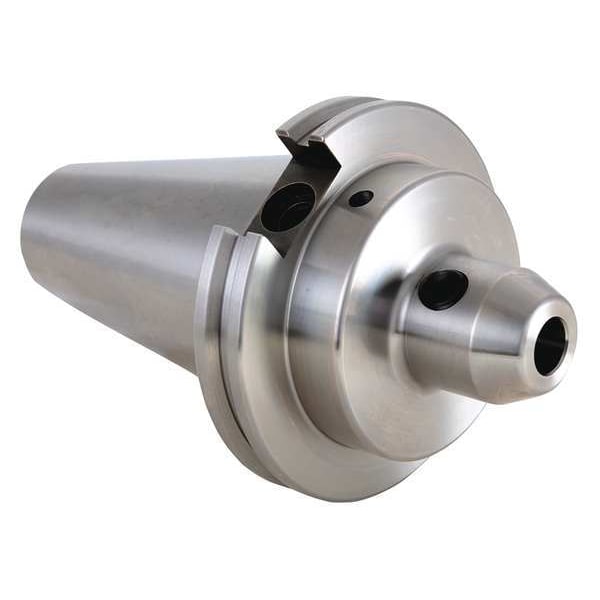

End Mill Holder, CAT50, 0.5000in Bore Dia.
| Bore Dia. | 1/2 in |
|---|---|
| Taper Size | CAT50 |
| Coolant Through | Yes |
| Nose Dia. | 1-1/2 in |
| Lock Screw Thread Size | 0.4375 to 20 |
| End | Single |
| Nose Type | Stubby |
| Projection | 2.67 in |
| Dimension Type | SAE |
| Item | End Mill Holder |
| Thread Size | 7/16"-20 |
| Coolant Fed | Coolant Through |
| Measurement System | Inch |
| End Type | Single End |
| Shank Type - Machining | Taper |
| Features | Tighten Collet Nut to Recommended Torque using a Torque Wrench and Adapter |
| Product Type | End Mill Holder |
| Set Screw Thread Size | 7/16 in |
| T.I.R. Tolerance | 0 in |
| Overall Diameter | 2-3/4 in |
| Body Diameter | 2-3/4 in |
| Speed - Maximum | 15,000 rpm |
| Bore Diameter | 1/2 in |
| Coolant Supply | Coolant Through-Spindle |
| Nose Diameter | 1-1/2 in |
| Contact Type | Single Contact |
| Package Quantity | 1 |
