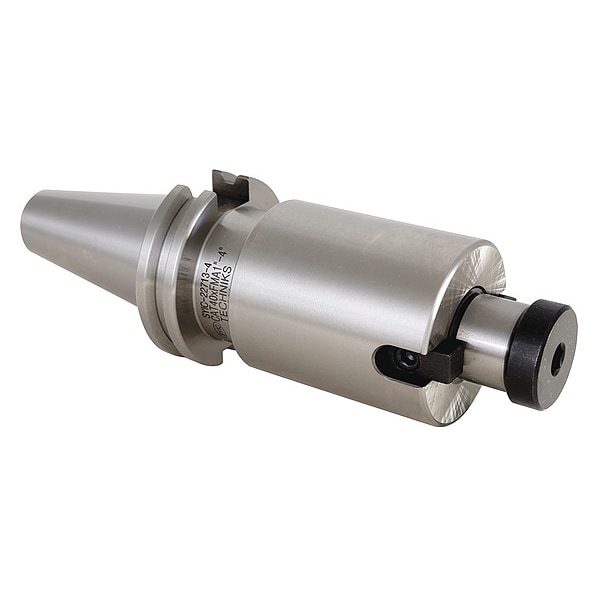

Face Mill Holder
| For Use With | Collet Extensions |
|---|---|
| Item | Face Mill Holder |
| Features | Precision Ground, Polished |
| Material - Machining | Carbon Steel |
| Projection | 8 in |
| Type | Face Mill Arbor |
| T.I.R. Tolerance | 0 in |
| Material | Steel |
| Includes Lock Screw | Lock Screw Included |
| Drive Key Length | 0.38 in |
| Contact Type | Single Contact |
| Compatible Lock Screw Model Number | FMAKEY-1 |
| Lock Screw Size | 1.19 in |
| Pilot Diameter | 1 in |
| Head Diameter | 2-13/64 in |
| Compatible Drive Key Model Number | WF1-1.75 |
| Pilot Length | 0.69 in |
| Taper Size | CAT40 |
| Coolant Supply | Coolant Through |
| Measurement System | Inch |
| Product Type | Shell Mill Holder |
| Speed - Maximum | Not Applicable |
| Body Diameter | 2.2 in |
| Package Quantity | 1 |
