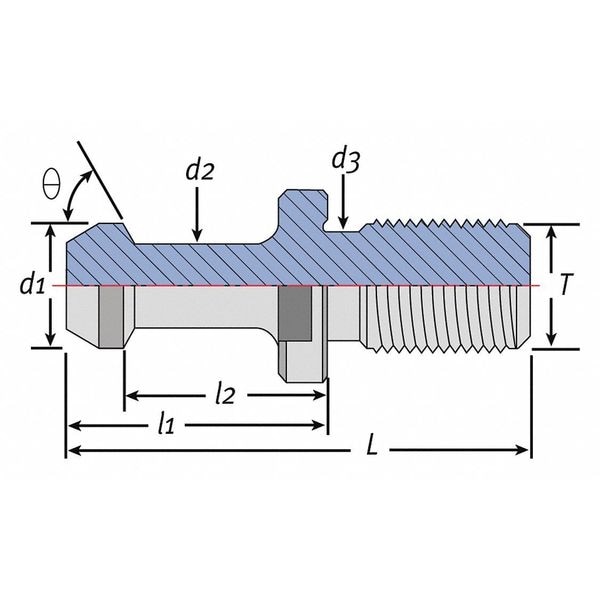

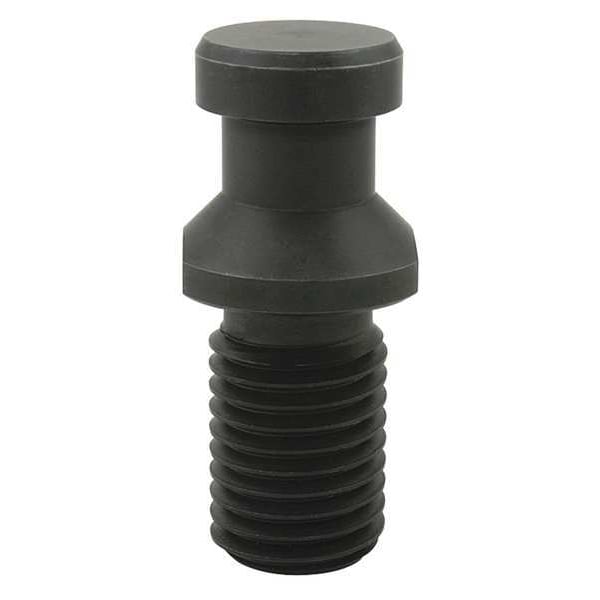

Retention Knob, 1.101 in, CAT50, 1-8, 15 deg
| Item | Retention Knob |
|---|---|
| Overall Length | 2.64 in |
| Material | Steel |
| Features | All Mating Surfaces Precision Ground, Hardened for Maximum Longevity |
| Flange to Angle Length | 0.984 in |
| Neck Dia. | 0.825 in |
| Flange to Knob Length | 1.338 in |
| Taper Size | CAT50 |
| Coolant Through | No |
| Knob Dia. | 1.101 in |
| Angle | 15 Degrees |
| Thread Size | 1"-8 |
| Coolant Fed | Non-Coolant Through |
| Knob Outside Dia. | 1.101 in |
| Angle Radius | 15 deg |
| Flange to Beginning of Knob Length | 0.984 in |
| Neck Diameter | 0.825 in |
| Flange to End of Knob Length | 1.338 in |
| Knob Outside Diameter | 1.1 in |
| Coolant Hole Diameter | Not Applicable |
| Package Quantity | 1 |
