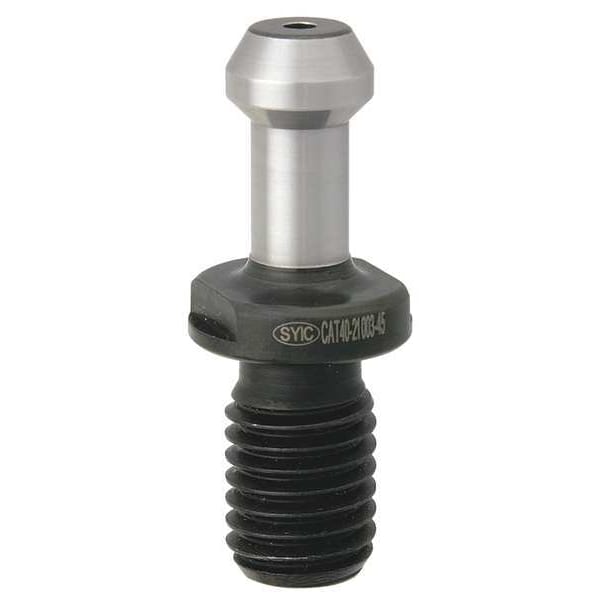

Retention Knob, 1.50 in. L, 0.94 in. dia.
| Item | Retention Knob |
|---|---|
| Overall Length | 1-1/2 in |
| Material | Steel |
| Length | 1-1/2 in |
| For Use With | CAT40 Tool Holders |
| Features | All Mating Surfaces Precision Ground, Hardened for Maximum Longevity |
| Size | 1-1/2 in |
| Style | Straight |
| Angle | 45 Degrees |
| Neck Dia. (In.) | 0.49 |
| Series | CAT40 |
| Standard | ANSI |
| Thread | 5/8-11 |
| Dia. | 0.94 in |
| Thread Size | 5/8"-11 |
| Neck Dia. | 0.49 in |
| Flange Thickness | 0.49 in |
| Taper Size | CAT40 |
| Flange to Angle Length | 0.44 in |
| Coolant Fed | Non-Coolant Through |
| Angle Radius | 45 deg |
| Knob Outside Dia. | 0.74 in |
| Standards | ANSI |
| Knob Outside Diameter | 0.74 in |
| Flange to End of Knob Length | 0.64 in |
| Coolant Hole Diameter | Not Applicable |
| Neck Diameter | 0.49 in |
| Flange to Beginning of Knob Length | 0.44 in |
| Package Quantity | 1 |
