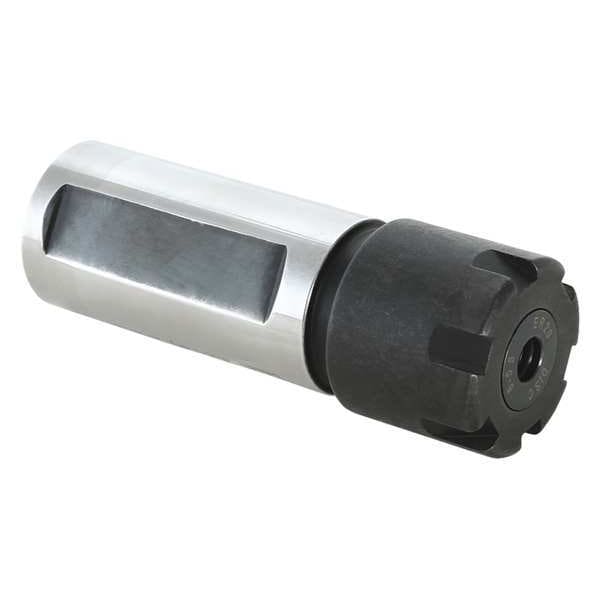

Straight Shank Coolant Chuck, ER16, 4.34in
| Item | Collet Chuck Extension |
|---|---|
| Tool Side Dia. | 1.26 in |
| Shank Type | Straight |
| Overall Length | 4.336 in |
| Shank Shape | Cylindrical |
| Shank Dia. | 3/4 in |
| Collet Series | ER16 |
| Projection | 3.42 in |
| Nose Dia. | 0.866 in |
| For Use With | Precision ER Collets |
| Features | Coolant up to 1500 psi |
| Coolant Fed | Coolant Through |
| Head Length | 0.916 in |
| Compatible Product Type | ER Collets |
| Backup Screw Thread Size | M10 x 1.5 |
| Speed - Maximum | 25,000 rpm |
| Coolant Supply | Coolant Through |
| Compatible Nut Model Number | Not Applicable |
| Operating Pressure - Maximum | 1,500 psi |
| Shank Diameter | 3/4 in |
| Head Diameter | 22 mm |
| T.I.R. Tolerance | 0 in |
| Compatible Collet Wrench | 04622 |
| Included Nut Type | Mini |
| Shank Length | 3-27/64 in |
| Compatible Collet Series | ER16 |
| Package Quantity | 1 |
