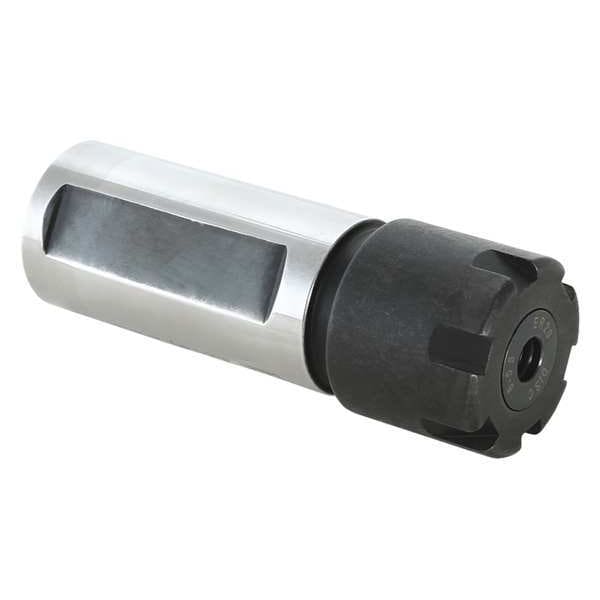

Straight Shank Coolant Chuck, ER32, 4.52in
| Item | Collet Chuck Extension |
|---|---|
| Tool Side Dia. | 1.97 in |
| Shank Type | Straight |
| Overall Length | 4.52 in |
| Shank Shape | Cylindrical |
| Collet Series | ER32 |
| Shank Dia. | 1-1/4 in |
| Projection | 2.36 in |
| Nose Dia. | 1.97 in |
| For Use With | Precision ER Collets |
| Coolant Fed | Coolant Through |
| Features | Coolant up to 1500 psi |
| Head Length | 2.16 in |
| Coolant Supply | Coolant Through |
| Speed - Maximum | 25,000 rpm |
| Head Diameter | 50 mm |
| Backup Screw Thread Size | M12 x 1.75 |
| Compatible Collet Series | ER32 |
| Included Nut Type | Slotted |
| Compatible Collet Wrench | 04616 |
| Shank Length | 2-23/64 in |
| Shank Diameter | 1-1/4 in |
| Compatible Nut Model Number | Not Applicable |
| T.I.R. Tolerance | 0 in |
| Compatible Product Type | ER Collets |
| Operating Pressure - Maximum | 1,500 psi |
| Package Quantity | 1 |
