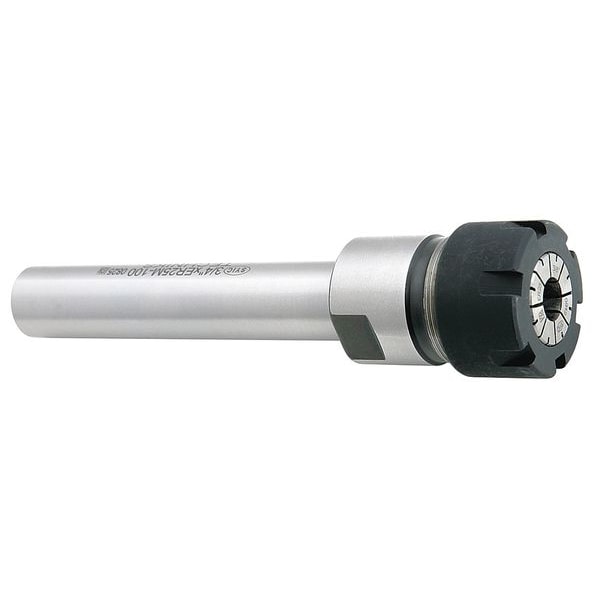

Tap Holder, Straight, ER20, 1.102in, Steel
| Item | Collet Chuck Extension |
|---|---|
| Collet Series | ER20 |
| For Use With | Collet Chuck Tool Holders |
| Material | Steel |
| Max. Collet Capacity | 0.512 in |
| Dimension Type | Straight |
| Projection | 28 mm |
| Nut Dia. | 1.1 in |
| Min. Collet Capacity | 0.02 in |
| Shank Dia. | 1 in |
| Overall Length | 168 mm |
| Shank Type | Straight |
| Coolant Fed | Coolant Through |
| Features | Balanced Up to 25,000 RPM |
| Nose Dia. | 28 mm |
| Compatible Product Type | ER Collets |
| Shank Diameter | 1 in |
| Operating Pressure - Maximum | Not Applicable |
| Speed - Maximum | 25,000 rpm |
| Compatible Collet Series | ER20 |
| Compatible Collet Wrench | 04623 |
| Head Diameter | 28 mm |
| Backup Screw Thread Size | M10 x 1.5 |
| T.I.R. Tolerance | 0 in |
| Coolant Supply | Coolant Through |
| Shank Length | 140 mm |
| Compatible Nut Model Number | 23120 |
| Compatible Backup Screw Model Number | 16083 |
| Included Nut Type | Mini |
| Head Length | 28 mm |
| Package Quantity | 1 |
