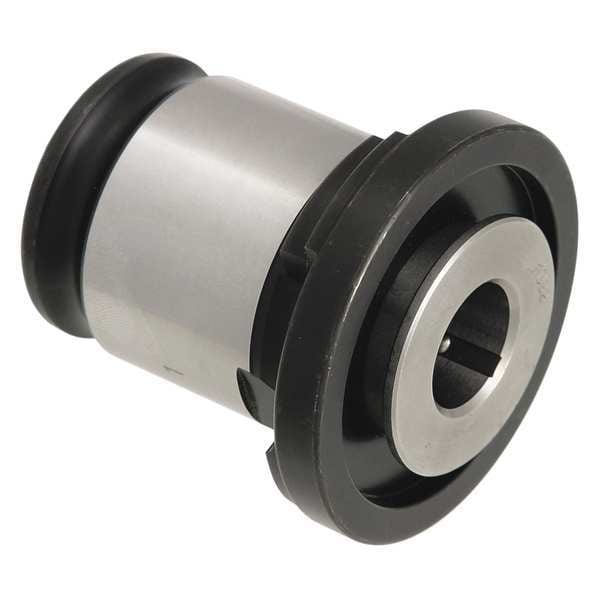

Tapping Collet, 0.323 in. Shank, #1
| Item | Tap Adapter |
|---|---|
| Collet Series | ANSI Rigid Tap 19/11 |
| Size | 0.323" |
| Tap Size | 7/16" |
| Coolant Through | No |
| For Use With | ANSI and Metric/ANSI Shank Taps: 7/16 in, M1 |
| Coolant Fed | Non-Coolant Through |
| Head Dia. | 1.18 in |
| Compatible with Product Type | ANSI Taps |
| Collet Type | Tap |
| Max. Bore Dia. | 3/4 in |
| Face Shape | Round |
| For Shank Type | ANSI Tap Shank |
| Overall Length | 1-1/8 in |
| Measurement System | Inch |
| Features | Automatically Stops Spinning when Bottom is Reached, Prevents Broken Taps, Quick-Change Style |
| Min. Size | 0.323 in |
| Max. Body Dia. | 0.323 in |
| Product Type | Tap Adapter |
| Tap Square Size | 0.242 in |
| Tap Size - Millimeters - Maximum | M11 |
| Operating Pressure - Maximum | Not Applicable |
| Tap Shank Diameter | 0.323 in |
| Tap Size - Millimeters - Minimum | Not Applicable |
| Tap Size - Inches - Minimum | Not Applicable |
| Tap Size - Inches - Maximum | 7/16 in |
| Series | ANSI 1 |
| Quick-Change Status | Quick-Change |
| Outside Diameter - Maximum | 1.18 in |
| Compatible Tap Holder | ANSI Taps |
| Package Quantity | 1 |
