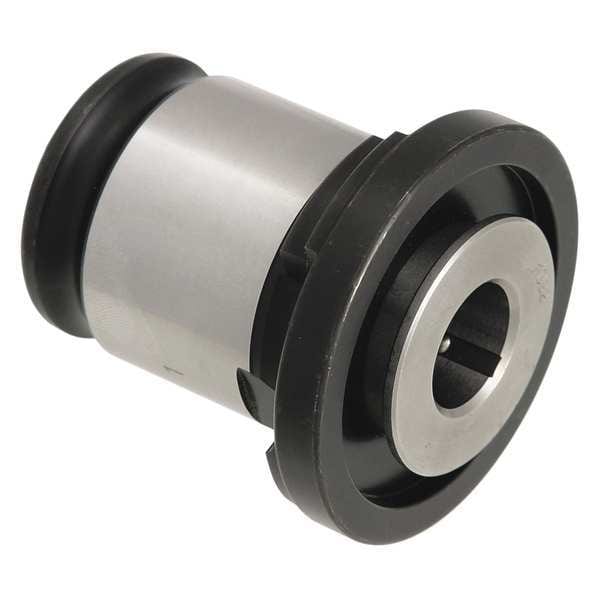

Tapping Collet, 0.429 in. Shank, #2
| Item | Tap Adapter |
|---|---|
| Collet Series | ANSI Rigid Tap 31/12 |
| Size | 0.429" |
| For Use With | ANSI and Metric/ANSI Shank Taps: 9/16 in, M14 |
| Coolant Through | No |
| Tap Size | 9/16" |
| Coolant Fed | Non-Coolant Through |
| Max. Body Dia. | 0.429 in |
| Face Shape | Round |
| For Shank Type | ANSI Tap Shank |
| Overall Length | 1-13/16 in |
| Measurement System | Inch |
| Collet Type | Tap |
| Max. Bore Dia. | 1.22 in |
| Head Dia. | 1.81 in |
| Min. Size | 0.429 in |
| Features | Automatically Stops Spinning when Bottom is Reached, Prevents Broken Taps, Quick-Change Style |
| Compatible with Product Type | ANSI Taps |
| Product Type | Tap Adapter |
| Tap Square Size | 0.322 in |
| Quick-Change Status | Quick-Change |
| Tap Size - Millimeters - Minimum | Not Applicable |
| Tap Size - Inches - Minimum | Not Applicable |
| Tap Shank Diameter | 0.429 in |
| Outside Diameter - Maximum | 1.81 in |
| Tap Size - Millimeters - Maximum | M14 |
| Tap Size - Inches - Maximum | 9/16 in |
| Operating Pressure - Maximum | Not Applicable |
| Compatible Tap Holder | ANSI Taps |
| Series | ANSI 2 |
| Package Quantity | 1 |
