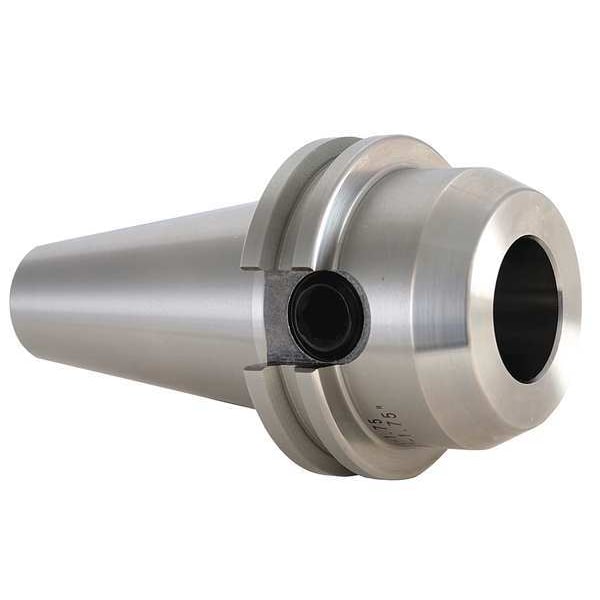

Tool Holder, 4-29/64in L, 0.750in. dia.
| Standards | DIN 69871-AD |
|---|---|
| Taper | CAT40 |
| Item | End Mill Holder |
| End | Single |
| Overall Length (In.) | 4-29/64 |
| Bore Dia. | 3/4 in |
| For Use With | End Mill Cutter |
| Dia. | 1-3/4 in |
| Hole Dia. | 3/4 in |
| Dimension Type | Decimal Inch |
| Projection | 1-3/4 in |
| Application | For Holding Tools |
| Thread | 0.625 to 18 |
| Socket Depth (In.) | 1.929 |
| Type | V-Flange |
| Nose Dia. | 1-3/4 in |
| Series | SLN |
| Taper Size | CAT40 |
| Features | Balanced to 15,000 RPM @ G6.3, Improved T.I.R. for extended Cutting Tool Life, Tapered body design Reduces Vibration and Enhances Rigidity, Increased Rigidity and Accuracy during Heavy Side Loads |
| Shank Type - Machining | Taper |
| End Type | Single End |
| Measurement System | Inch |
| Body Diameter | 1-3/4 in |
| Overall Diameter | 2-1/2 in |
| Balance Rating | G6.3 |
| Contact Type | Single Contact |
| Bore Diameter | 3/4 in |
| Coolant Supply | Coolant Through-Spindle |
| Nose Diameter | 1-3/4 in |
| T.I.R. Tolerance | 0 in |
| Body Width | 1-3/4 in |
| Speed - Maximum | 15,000 rpm |
| Bore Tolerance | H5 |
| Product Type | End Mill Holder |
| Package Quantity | 1 |
