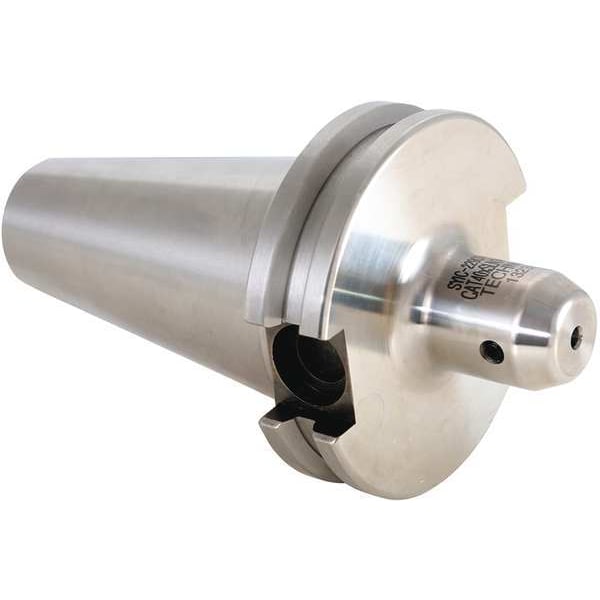

Tool Holder, 5-3/16in L, 0.375in. dia.
| Taper Size | CAT40 |
|---|---|
| Dimension Type | Decimal Inch |
| Thread | 0.375 to 24 |
| Series | SLN |
| Nose Dia. | 1 in |
| Item | End Mill Holder |
| Socket Depth (In.) | 1.035 |
| Standards | DIN 69871-AD |
| Inside Dia. | 3/8 in |
| Bore Dia. | 3/8 in |
| Type | V-Flange |
| Application | For Holding Tools |
| Overall Length (In.) | 5-3/16 |
| For Use With | End Mill Cutter |
| Projection | 2-1/2 in |
| Dia. | 1 in |
| End | Single |
| Hole Dia. | 3/8 in |
| Measurement System | Inch |
| End Type | Single End |
| Shank Type - Machining | Taper |
| Features | Balanced to 15,000 RPM @ G6.3, Improved T.I.R. for extended Cutting Tool Life, Tapered body design Reduces Vibration and Enhances Rigidity, Increased Rigidity and Accuracy during Heavy Side Loads |
| Nose Diameter | 1 in |
| T.I.R. Tolerance | 0 in |
| Body Diameter | 1-3/4 in |
| Overall Diameter | 2-1/2 in |
| Speed - Maximum | 15,000 rpm |
| Product Type | End Mill Holder |
| Contact Type | Single Contact |
| Coolant Supply | Coolant Through-Spindle |
| Body Width | 1-3/4 in |
| Bore Diameter | 3/8 in |
| Bore Tolerance | H5 |
| Balance Rating | G6.3 |
| Package Quantity | 1 |
