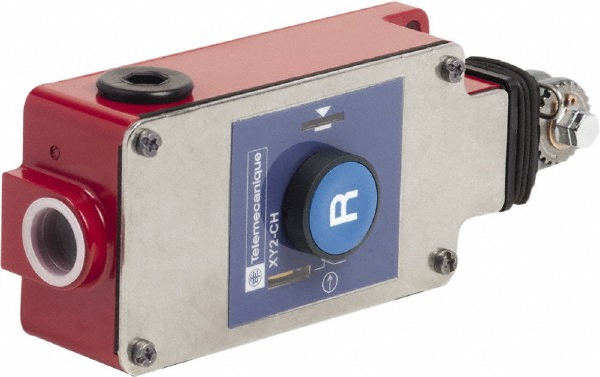

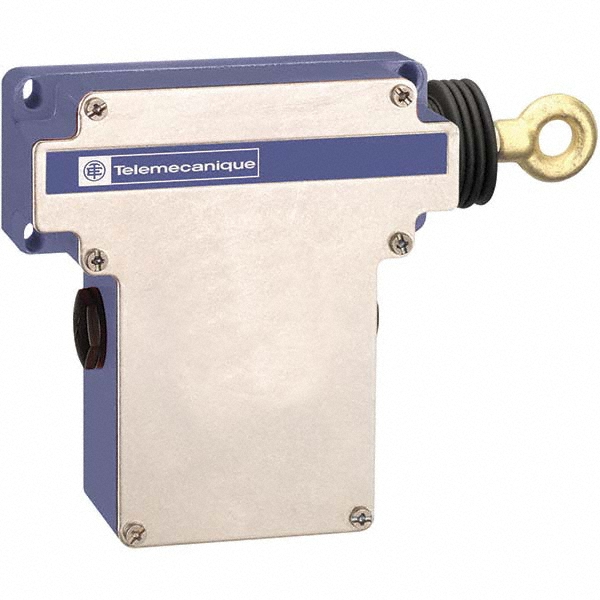

Pushbutton Reset, Cable Pull, 300 VAC/VDC
| Actuator Type | Cable Pull |
|---|---|
| Amperage | 10 A |
| Reset Type | Pushbutton |
| Contact Configuration | NO |
| Operation Direction | Right Hand |
| Terminal Type | Screw Clamp |
| Ingress Protection Rating | IP65; IP657 |
| Overall Width | 9.0200 in; 229 mm |
| Overall Height | 142 mm; 5.5900 in |
| Standards | CCC; CSA C22.2 No. 14; ANSI A17.1; EN/IEC 600068-2-27; NFC 63144; NFC 79-130; IEC 60529; NFC 20-030; NFC 20-010; EN/ISO 13850: 2006; IEC 61140; VDE 0660-207; Machinery Directive 2006/42/EC; EN/IEC 60947-5-5; UL 508 |
| UNSPSC Code | 39122213 |
| undefined | undefined |
| MSC Number | MSC# 49995236 |
