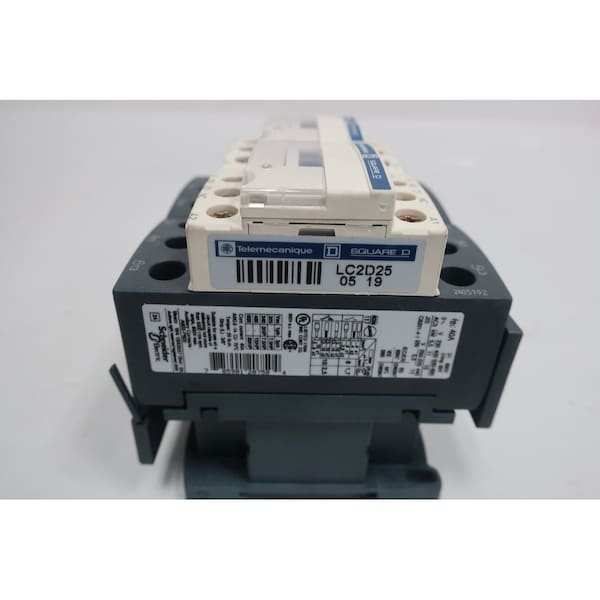

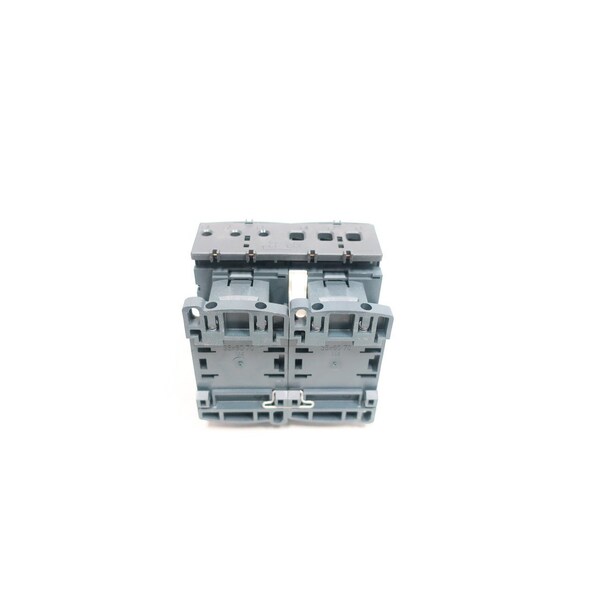

Contactador de marcha atrás de 110V CA y 15 caballos de fuerza, LC2D25F7
| Width | 90 mm |
|---|---|
| Height | 85 mm |
| Standards | CSA C22.2 No 14 , EN 60947-4-1 , EN 60947-5-1 , IEC 60947-4-1 , IEC 60947-5-1 , UL 508 , IEC 60335-1 |
| Depth | 92 mm |
| Mechanical Durability | 15 Mcycles |
| Operating Time | 12...22 ms closing , 4...19 ms opening |
| Rated Breaking Capacity | 450 A 440 V power circuit IEC 60947 |
| Control Circuit Voltage Limits | 0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz , 0.8...1.1 Uc -40-60 °C operational AC 50 Hz , 0.85...1.1 Uc -40-60 °C operational AC 60 Hz , 1...1.1 Uc 60-70 °C operational AC 50/60 Hz |
| Signalling Circuit Frequency | 25...400 Hz |
| Rated Short-Time Withstand Current | 50 A 40 °C - 10 min power circuit, 120 A 40 °C - 1 min power circuit, 240 A 40 °C - 10 s power circuit, 380 A 40 °C - 1 s power circuit, 100 A - 1 s signalling circuit, 120 A - 500 ms signalling circuit, 140 A - 100 ms signalling circuit |
| Non-Overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Electrical Durability | 1.65 Mcycles 25 A AC-3 <= 440 V , 1.4 Mcycles 40 A AC-1 <= 440 V |
| Overvoltage Category | III |
| Net Weight | 0.787 kg |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm , control circuit 1.7 N.m screw clamp terminals Philips No 2 , power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm , power circuit 2.5 N.m screw clamp terminals Philips No 2 , control circuit 1.7 N.m screw clamp terminals pozidriv No 2 , power circuit 2.5 N.m screw clamp terminals pozidriv No 2 |
| Interlocking Type | Mechanical |
| Product Certifications | DNV , CSA , CCC , UL , GL , LROS (Lloyds register of shipping) , BV , RINA , GOST , UKCA |
| Mounting Support | Rail, Plate |
| Fire Resistance | 850°C IEC 60695-2-1 |
| Minimum Switching Voltage | 17 V signalling circuit |
| Device Short Name | LC2D |
| Range | TeSys, Deca |
| Contactor Application | Resistive load |
| Rated Insulation Voltage | Power circuit 690V IEC 60947-4-1, power circuit 600V CSA, power circuit 600V UL, signalling circuit 690V IEC 60947-1, signalling circuit 600V CSA, signalling circuit 600V UL |
| Average Impedance | 2 mOhm - Ith 40 A 50 Hz power circuit |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 , B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Product Or Component Type | Reversing contactor |
| Connections - Terminals | Control circuit screw clamp terminals 1 1-4 mm²flexible without cable end , control circuit screw clamp terminals 2 1-4 mm²flexible without cable end , control circuit screw clamp terminals 1 1-4 mm²flexible with cable end , control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end , control circuit screw clamp terminals 1 1-4 mm²solid , control circuit screw clamp terminals 2 1-4 mm²solid , power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end , power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end , power circuit screw clamp terminals 1 1-10 mm²flexible with cable end , power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end , power circuit screw clamp terminals 1 1.5-10 mm²solid , power circuit screw clamp terminals 2 2.5-10 mm²solid |
| Product Name | TeSys Deca |
| Conventional Free Air Thermal Current | 10 A 60 °C signalling circuit, 40 A 60 °C power circuit |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz 0.3 20 °C, 7-7 VA 50 Hz 0.3 20 °C |
| Motor Power Kw | 5.5 kW 220...230 V AC 50-60 Hz , 11 kW 380...400 V AC 50-60 Hz , 11 kW 415 V AC 50-60 Hz , 11 kW 440 V AC 50-60 Hz , 15 kW 500 V AC 50-60 Hz , 15 kW 660...690 V AC 50-60 Hz |
| Flame Retardance | V1 conforming to UL 94 |
| Protective Treatment | THIEC 60068-2-30 |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Pole Contact Composition | 3 NO |
| Insulation Resistance | > 10 MOhm signalling circuit |
| Irms Rated Making Capacity | 140 A AC signalling circuit IEC 60947-5-1 , 250 A DC signalling circuit IEC 60947-5-1 , 450 A 440 V power circuit IEC 60947 |
| Inrush Power In Va | 70-70 VA 60 Hz 0.75 20 °C) , 70-70 VA 50 Hz 0.75 20 °C) |
| Rated Operational Voltage | Power circuit <= 690 V AC 25...400 Hz, Power circuit <= 300 V DC |
| Mechanical Robustness | vibrations contactor open2 Gn, 5...300 Hz , vibrations contactor closed4 Gn, 5...300 Hz , shocks contactor closed15 Gn for 11 ms , shocks contactor open8 Gn for 11 ms |
| Minimum Switching Current | 5 mA signalling circuit |
| Ambient Air Temperature For Storage | -60 to 80°C |
| Control Circuit Type | AC 50/60 Hz |
| Ambient Air Temperature For Operation | -40 to 60°C, 60 to 70 °C with derating |
| Utilisation Category | AC-1, AC-3, AC-3e |
| Control Circuit Voltage | 110V AC, 50/60 Hz |
| Poles Description | 3P |
| Auxiliary Contacts Type | mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1 |
| Coil Technology | Without built-in suppressor module |
| Power Dissipation Per Pole | 1.25 W AC-3 , 3.2 W AC-1 |
| Device Presentation | Preassembled with reversing power busbar |
| Rated Operational Current | 25 A 60 °C <= 440 V AC AC-3 power circuit, 40 A 60 °C <= 440 V AC AC-1 power circuit |
| Pollution Degree | 3 |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Maximum Horse Power Rating | 3 hp 230/240 V at AC 60 Hz for 1 phase , 5 hp 200/208 V at AC 60 Hz for 3 phase , 2 hp 115 V at AC 60 Hz for 1 phase , 7.5 hp 230/240 V at AC 60 Hz for 3 phase , 15 hp 460/480 V at AC 60 Hz for 3 phase , 20 hp 575/600 V at AC 60 Hz for 3 phase |
| Heat Dissipation | 2-3 W 50/60 Hz |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Associated Fuse Rating | 10 A gG signalling circuit IEC 60947-5-1, 63 A gG <= 690 V type 1 power circuit, 40 A gG <= 690 V type 2 power circuit |
| Climatic Withstand | IACS E10, IEC 60947-1 Annex Q category D |
| Power | 11.185515503124 KW |
| Coil Voltage (AC) | 110 V-AC |
| Package Quantity | 1 |
